Element Settings

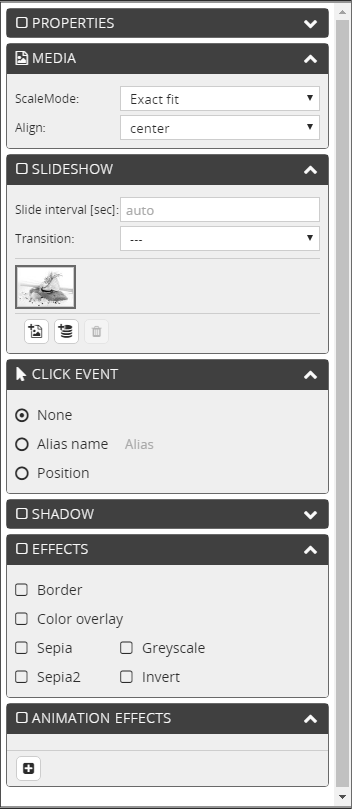

Element Properties
On the right hand of the Editor Program Window you can find a column that provides features to design the element. This allows you to define the size and position as well as the opacity in the Properties area. Below, you will find an area that allows further settings depending on the type of the element (media, text or shape).
- Aligning and adapting
- Slideshow (only media)
- Content (only text)
- Click Event
- Shadow
- Effects
- Animation Effects

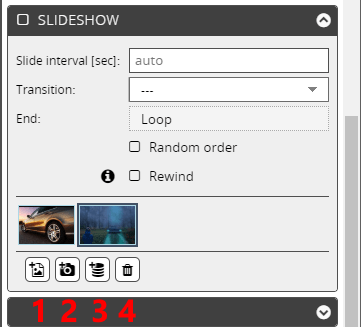

Slide show
This section gives you the possibility to add additional media to an inserted medium and display it in a slideshow.
- Opens the media pool
- Opens Pixabay
- Opens the library
- Removes selected media
Use the top boxes to set the Slide interval and Transition, Random order or Rewind.

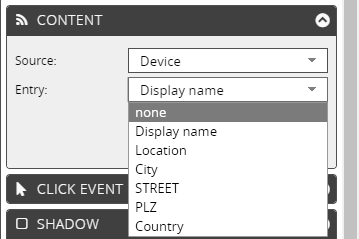

Content → Source: Device
In addition to the link described above, the Content area also allows you to enter Device under source to display the device data entered. After accessing the selection list, you can select your desired menu item as for example Display name, Location, City, Street, ZIP code or Country.

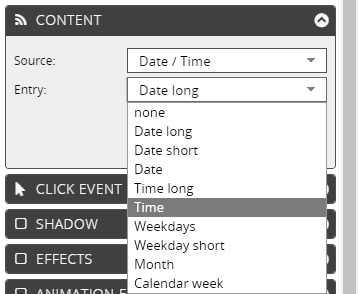

Content → Source: Date/Time
You also have the option of displaying variable data as for example date or time on the screen.
To do this, select the Date/Time option under source. Then open the drop down menu and select the desired menu item for Date long or short - Time long or short - Weekdays - Weekday short - Month - Calendar Week.

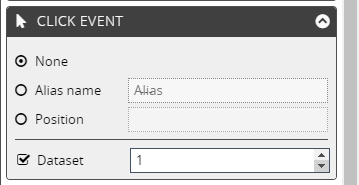

Click Event
IThis area allows you to interactively link the element to another screen in the playlist via the alias or the position (sequence number).

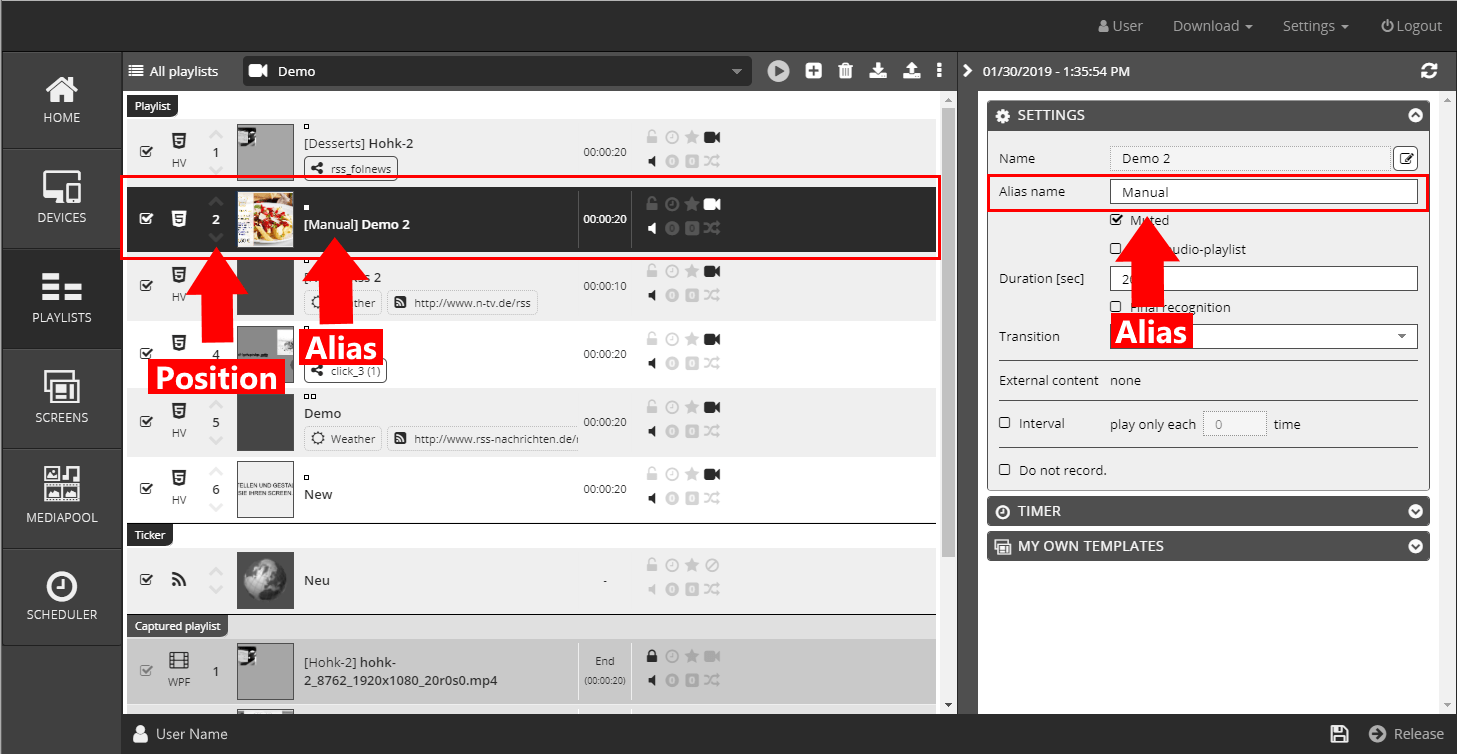

Alias or Position
You can either select the position of another screen in the playlist or its alias as the link for the click event. You define an alias after clicking in the settings of the playlist element.

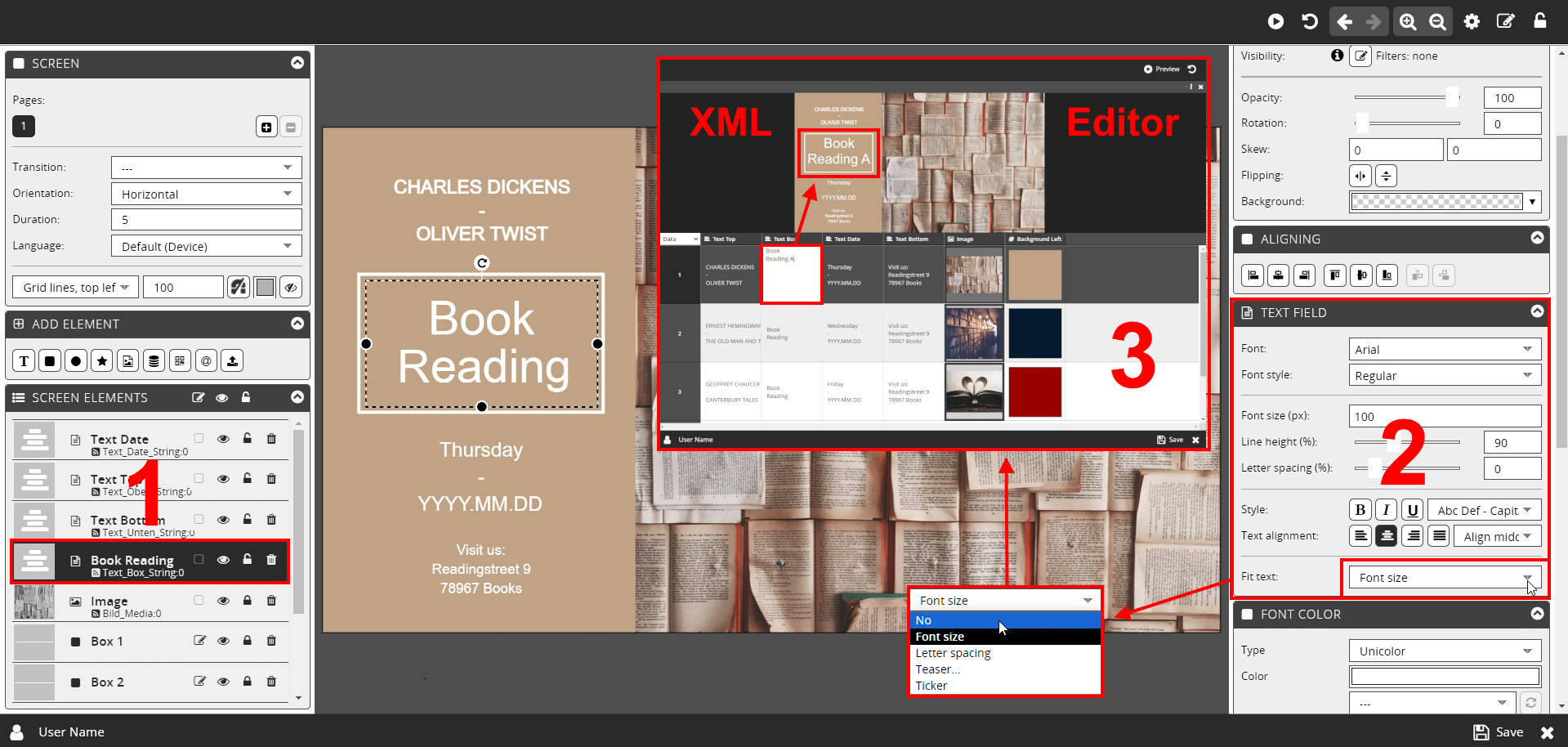

Letter Limitation in Text Fields For XML Entries
To ensure that a text fits perfectly into a text field, you can use the option not to fit a text. This will neither change the font size nor cut off the text.
- To do this, click on the relevant text field.
- Then go to the Fit text option under Text Field and select the menu item → No.
- If you then edit the text field in the XML Editor, the input is limited to the number of letters that fit in the text field.
Read more about this in the chapter Edit and Manage XML.
