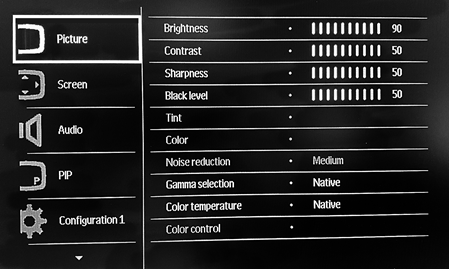

HOME Menu

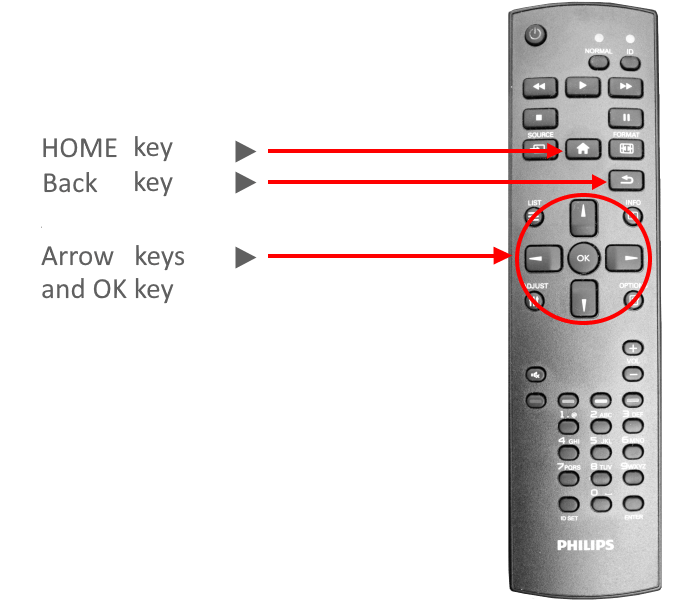

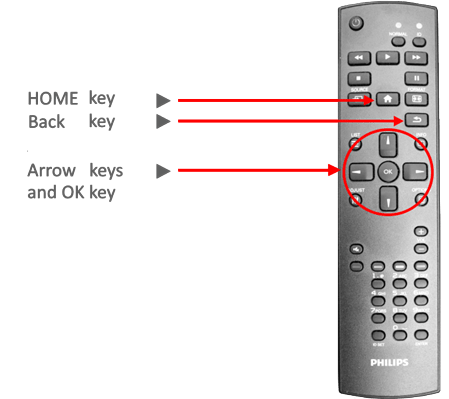

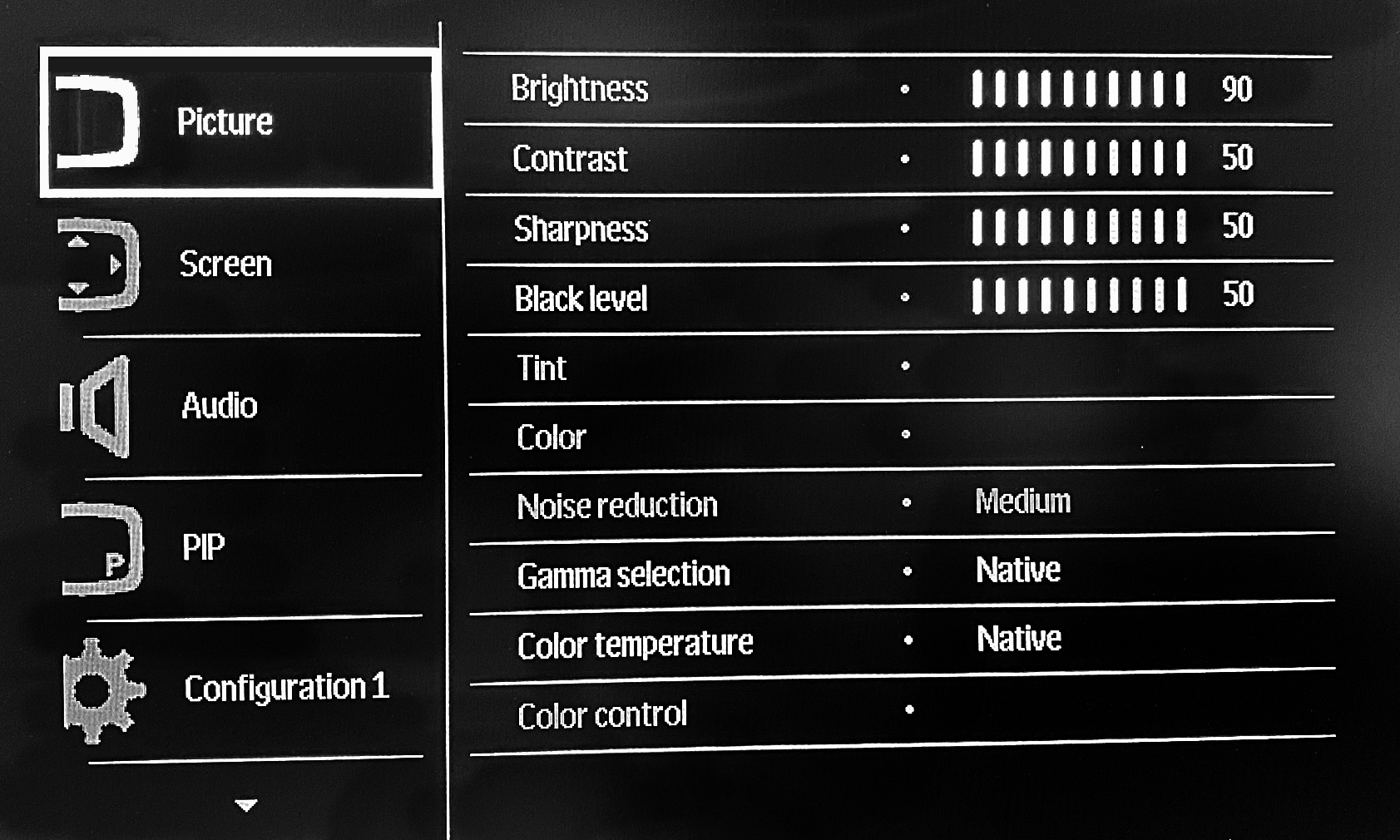

Once you have turned on the device and pressed the HOME key on the remote control of the device, the menu for setting up the device will appear on the screen.

(See illustration on the right side.)

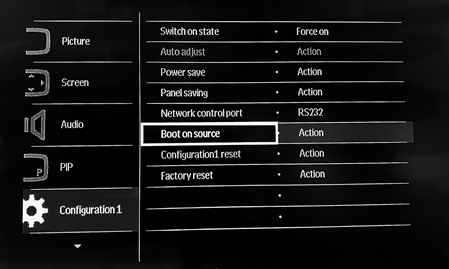

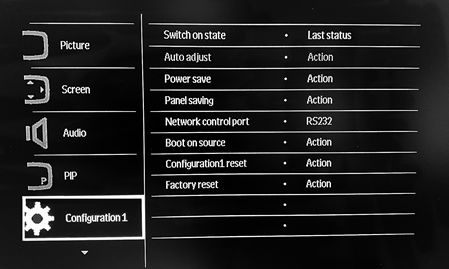

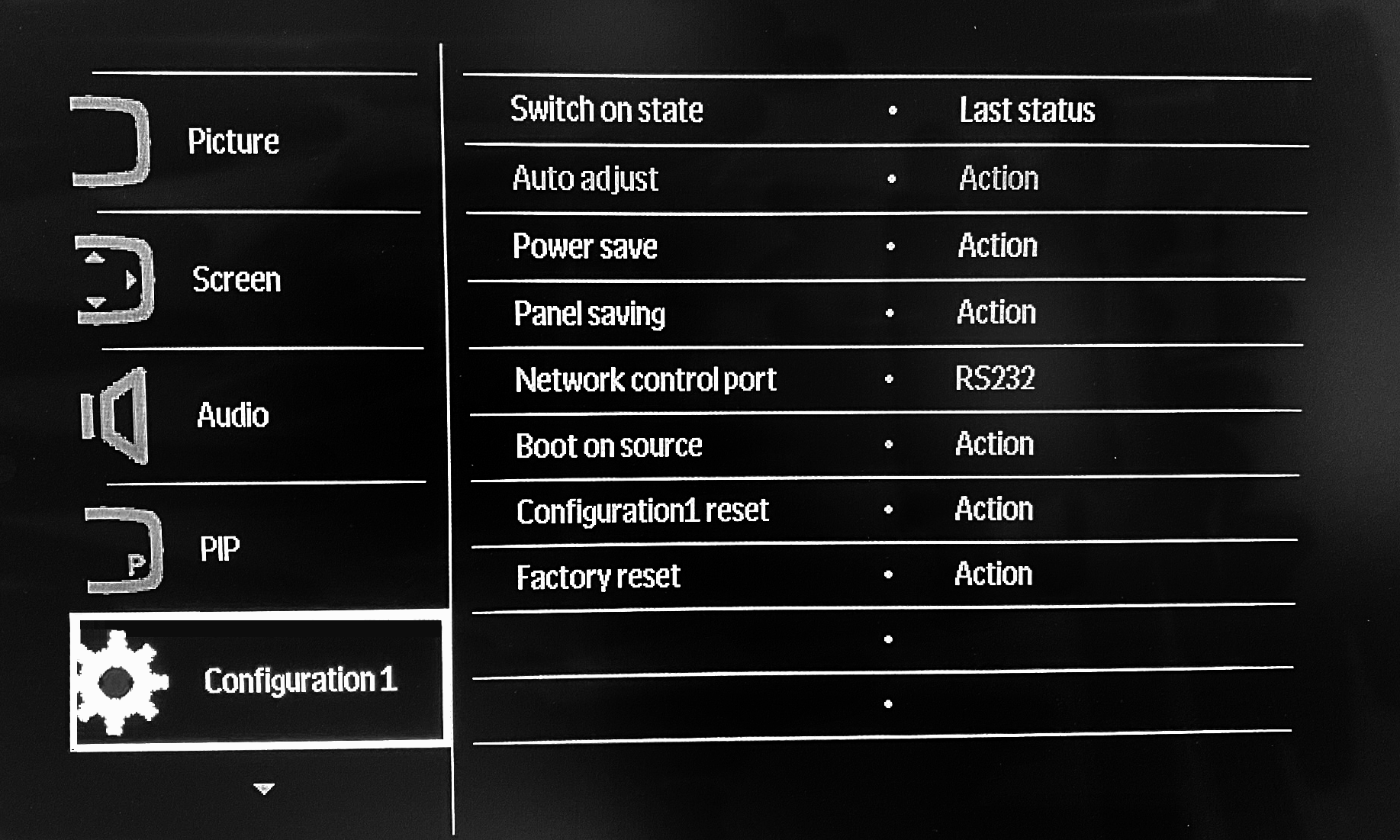

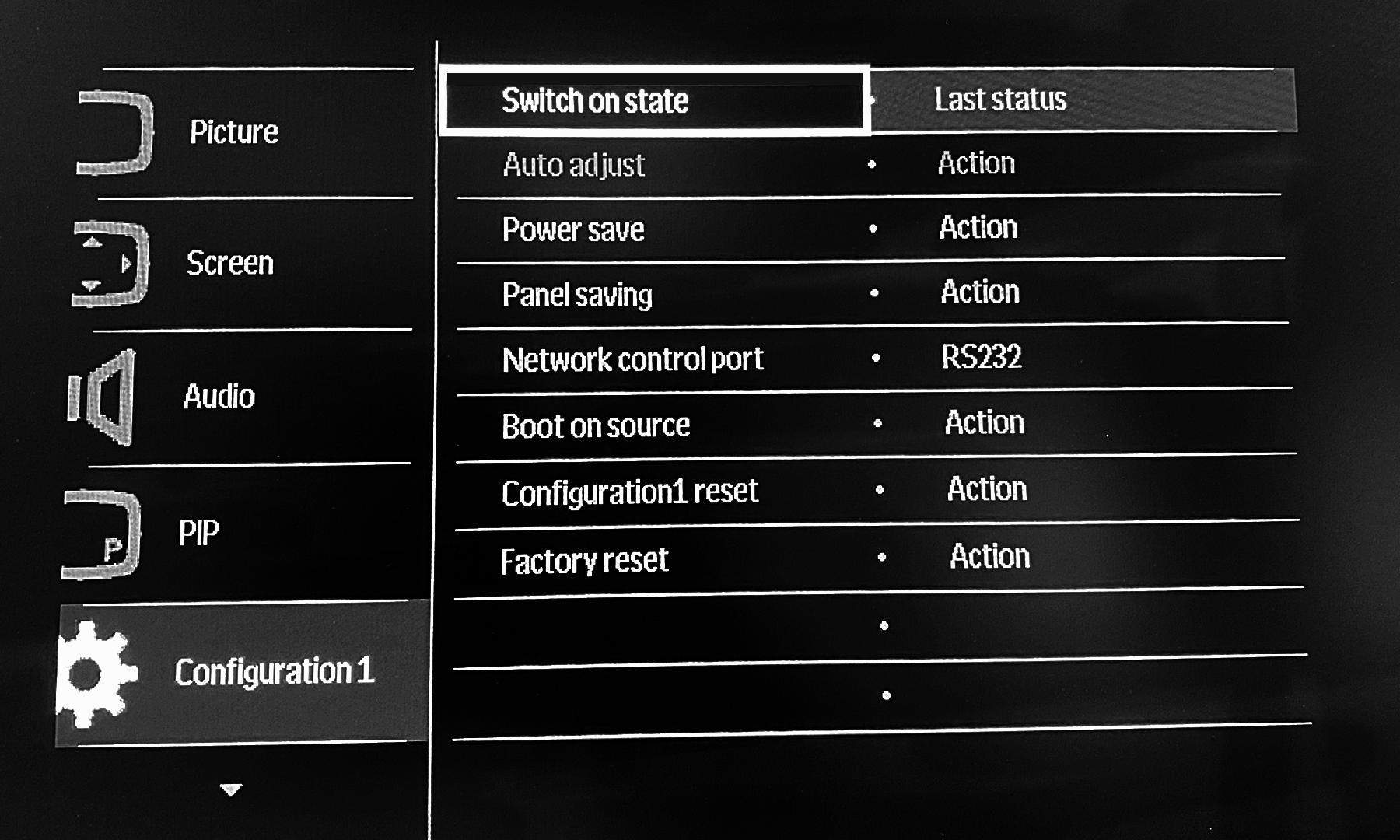

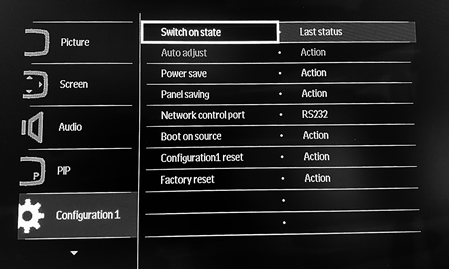

1. Use the arrow keys on the remote control of the device to go to the menu item → Configuration 1 in the left column of the menu.

2. Press the Ok key on the remote control to access the options on the right side.

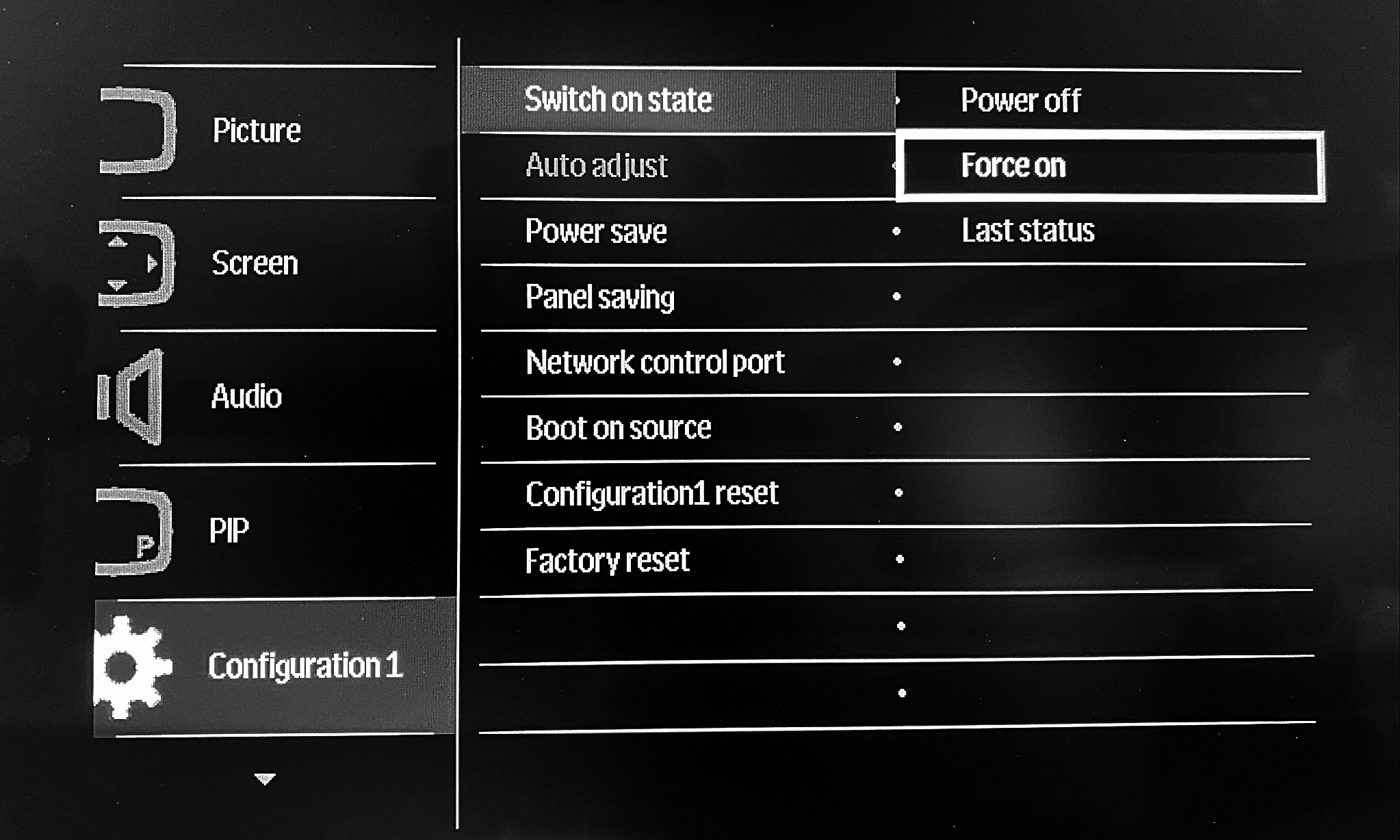

1. This will take you to the option → Switch on state in the middle column of the menu.
2. Press the Ok key on the remote control to enter the setting.

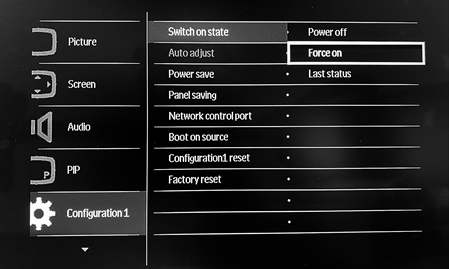

1. Use the arrow keys of the remote control to choose the setting option
   → Force on.

2. Then press the Back key on the remote control to accept the setting.

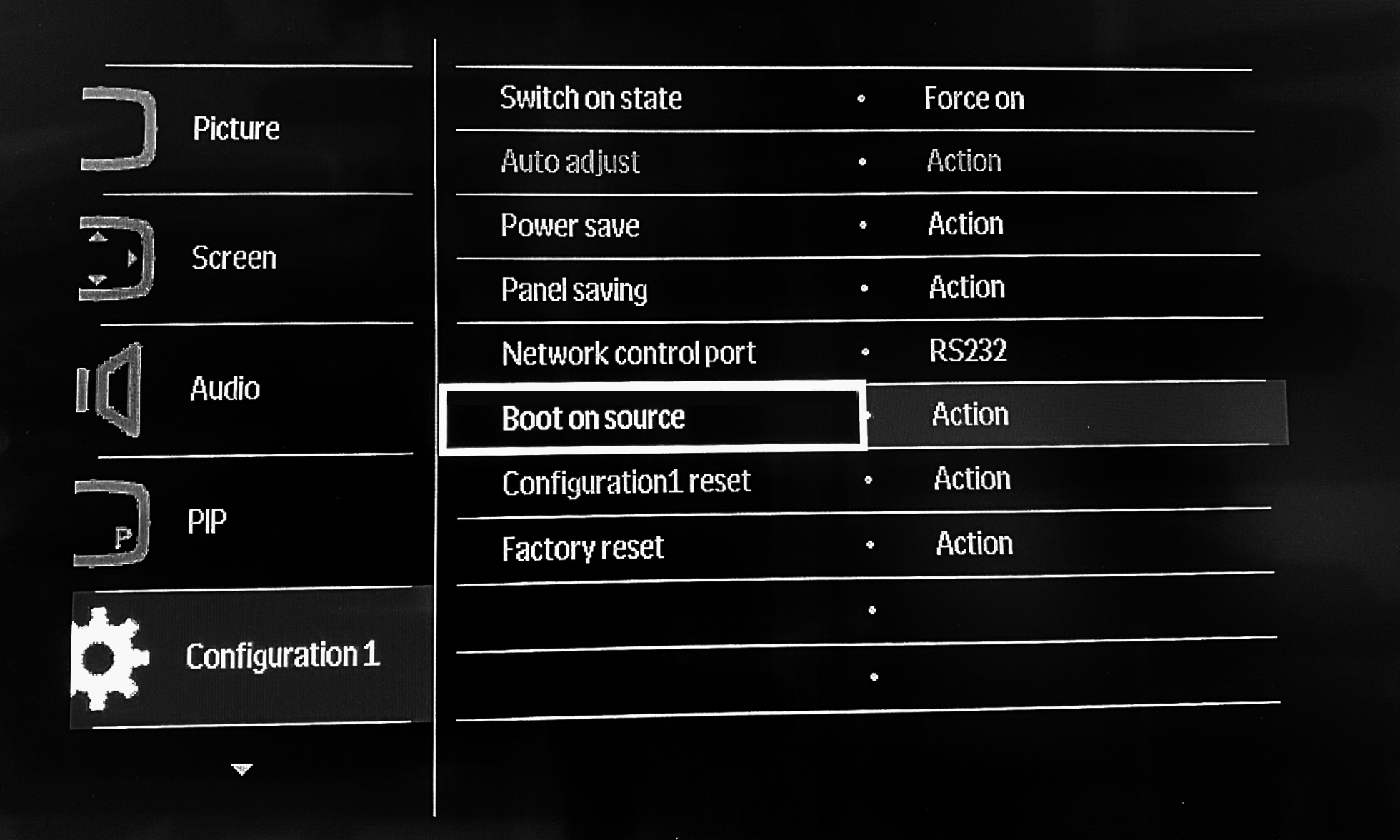

1. Use the arrow keys of the remote control to go to the option

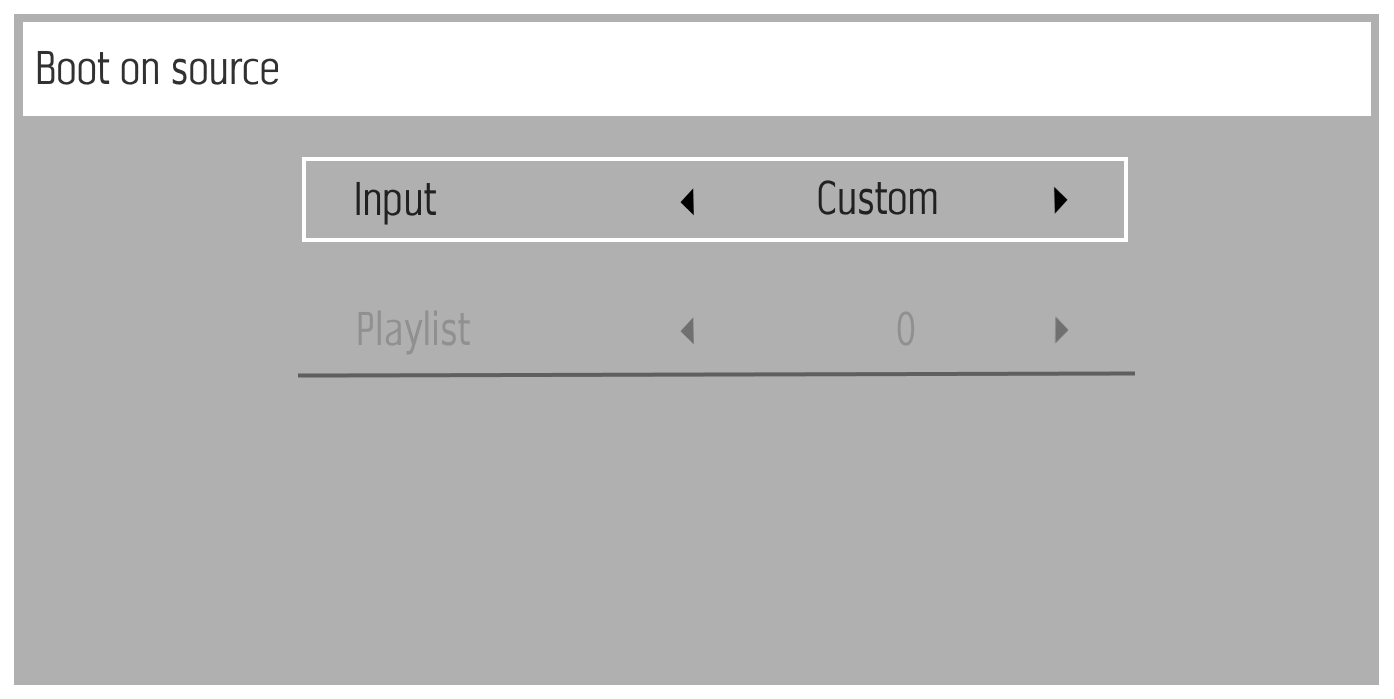

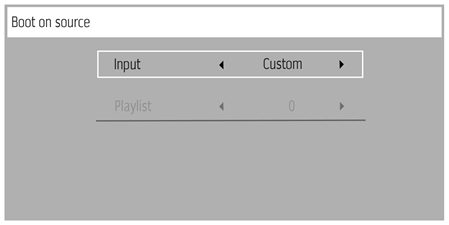

   → Boot on source.


2. Then press the Ok key to open the following  input window.

1. Go to → Input and choose the setting option → Custom.


2. Then press the Back key on the remote control to accept the setting.

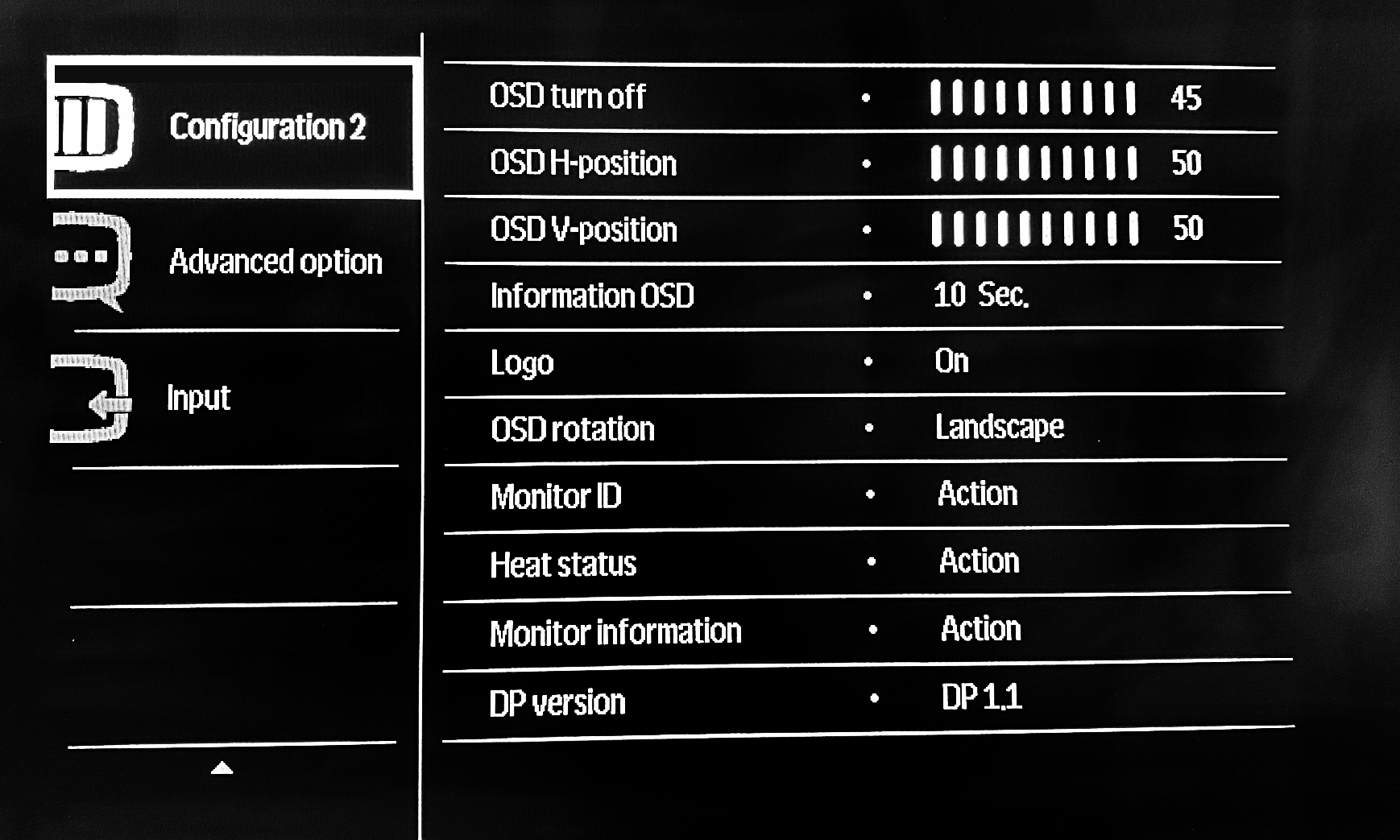

Configuration 2

1. Use the arrow keys of the remote control to access the menu item → Configuration 2.


2. Then press the Ok key on the remote control to get to the provided options.

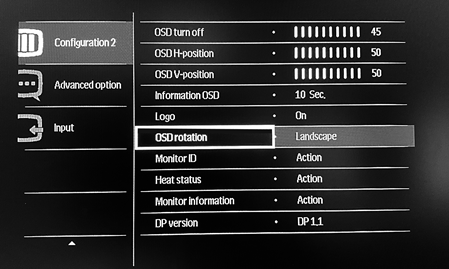

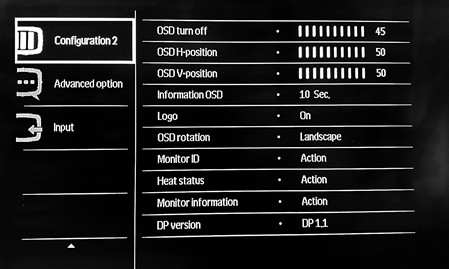

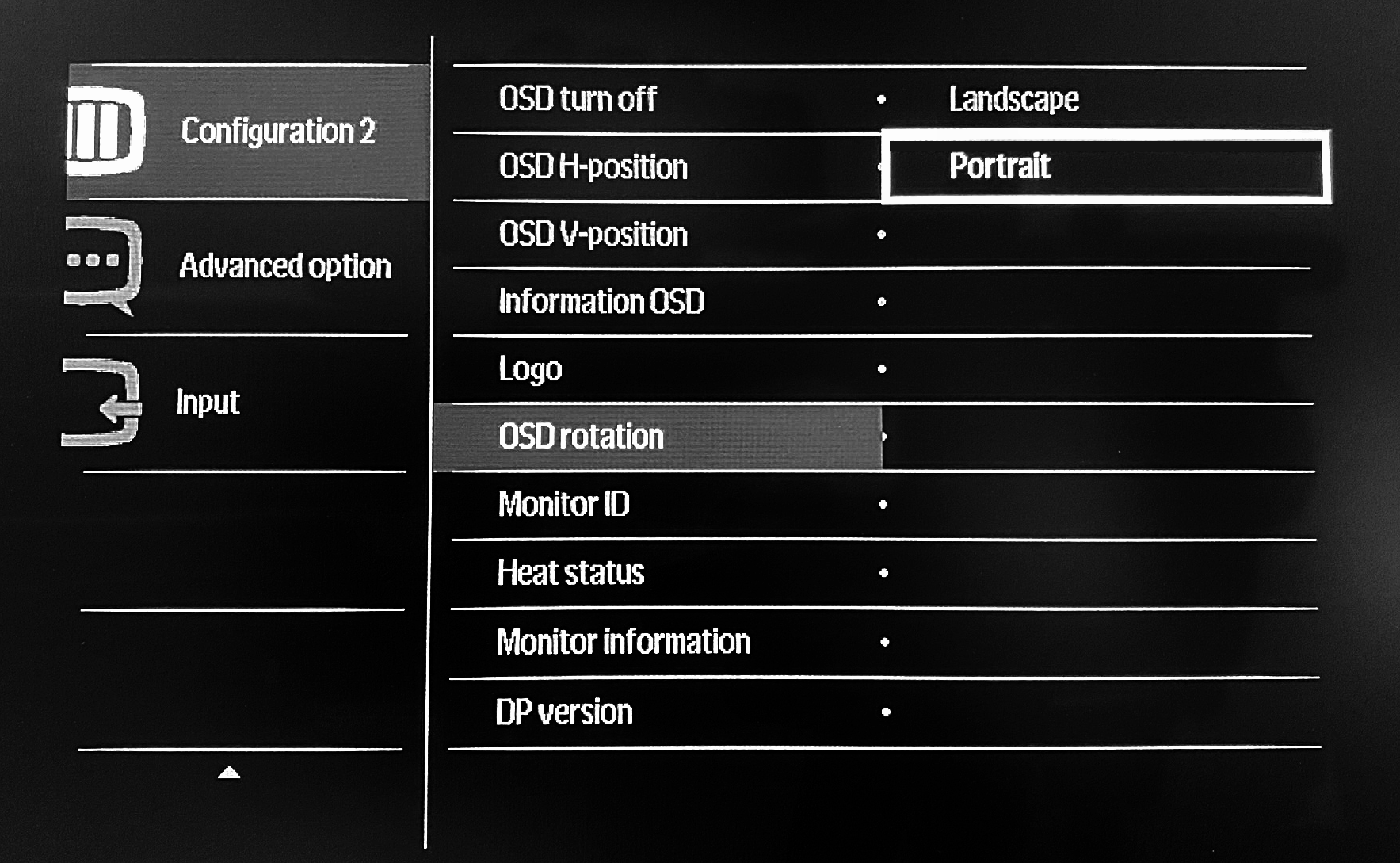

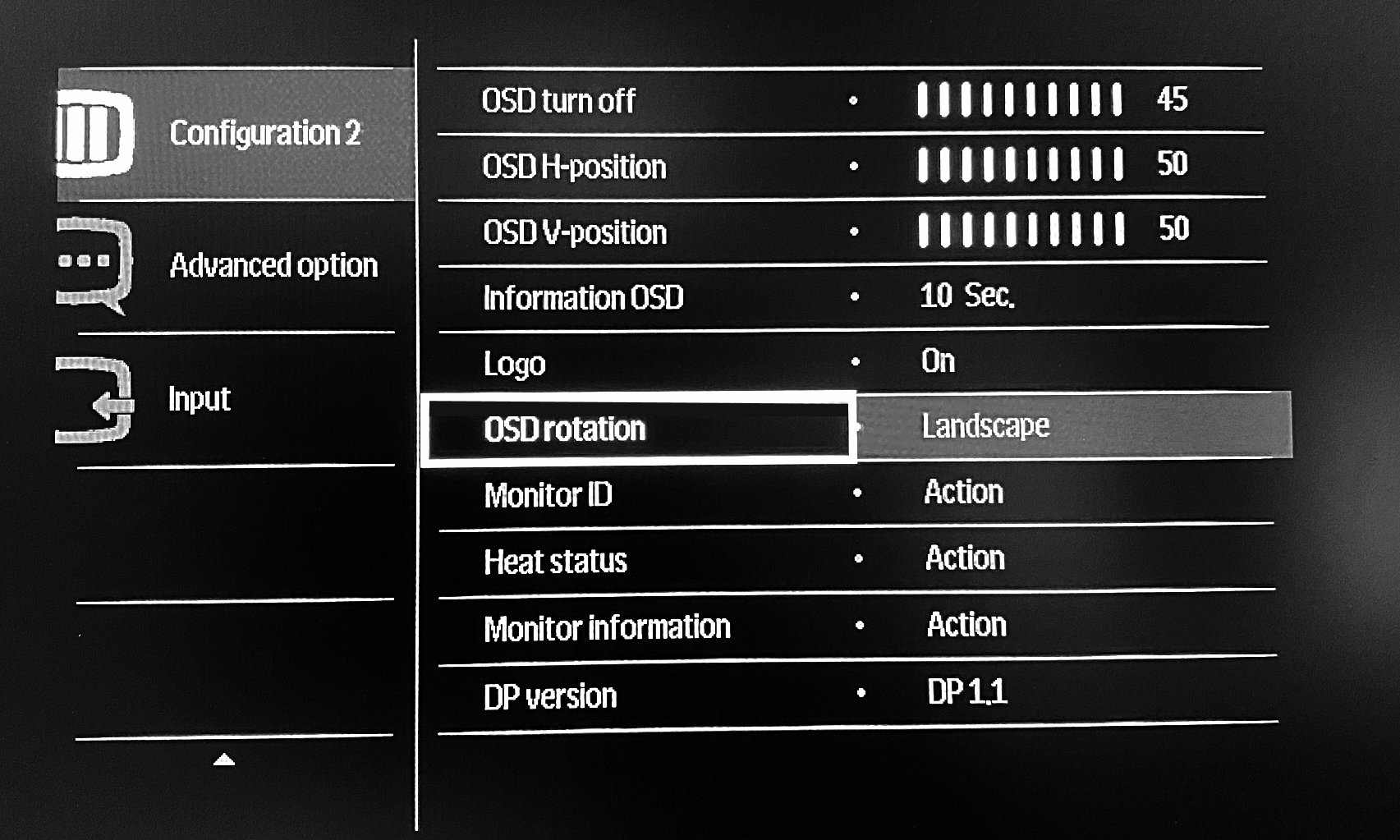

OSD Rotation

1. Use the arrow keys of the remote control to go to the option
   → OSD rotation.


2. Then press the Ok key on the remote control to access the setting options.

→ Format

1. Use the arrow keys of the remote control to access the format setting which you intend to use on your device → Portrait or Landscape.


2. Then press the Back key on the remote control accept the setting.

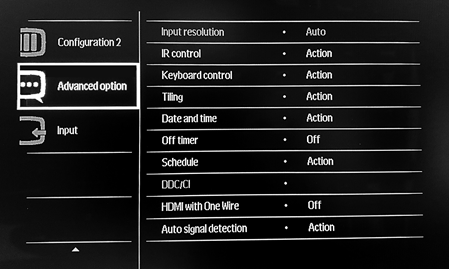

Advanced Option

1. Use the arrow keys of the remote control to access the menu item
   → Advanced Option.


2. Now press the Ok key on the remote control to get to the options.

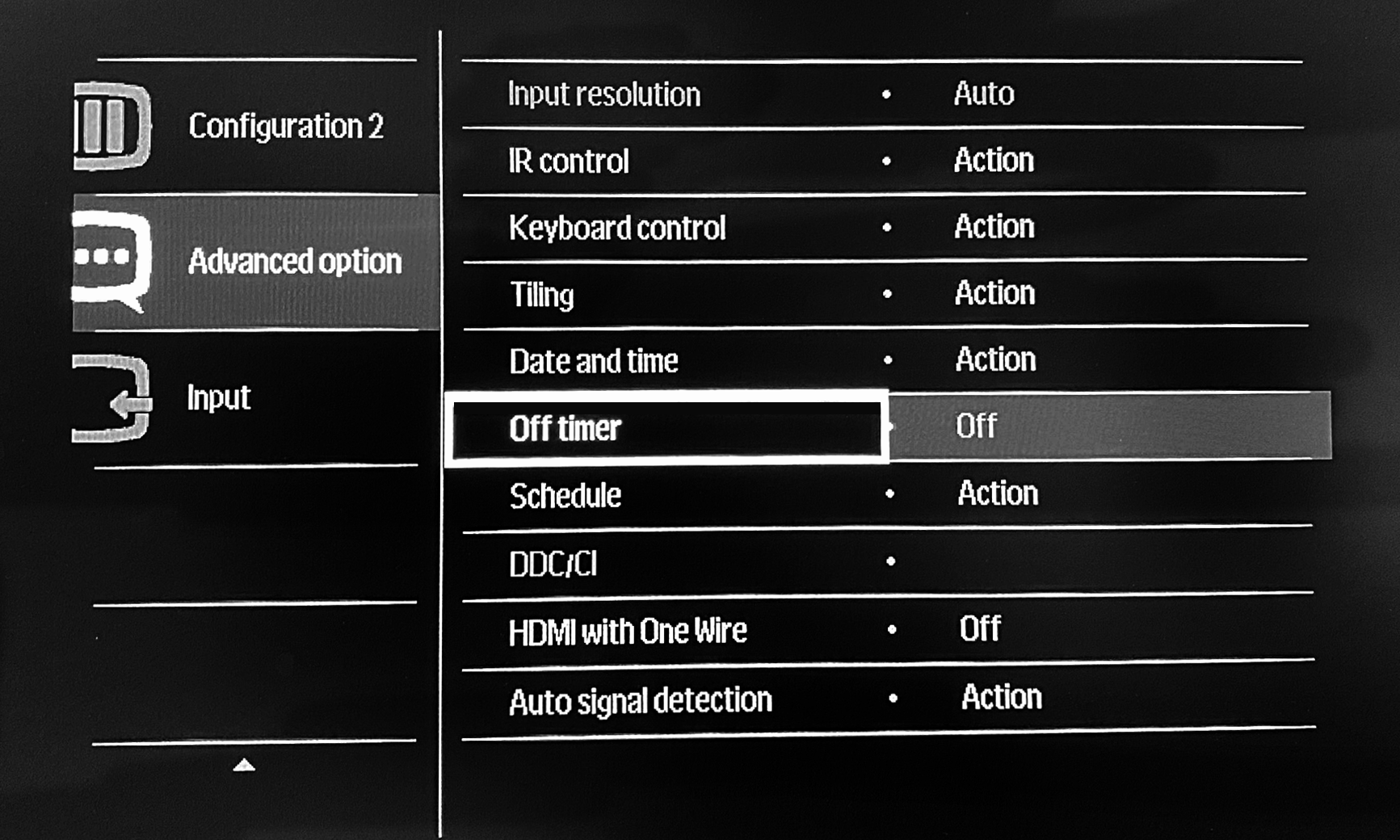

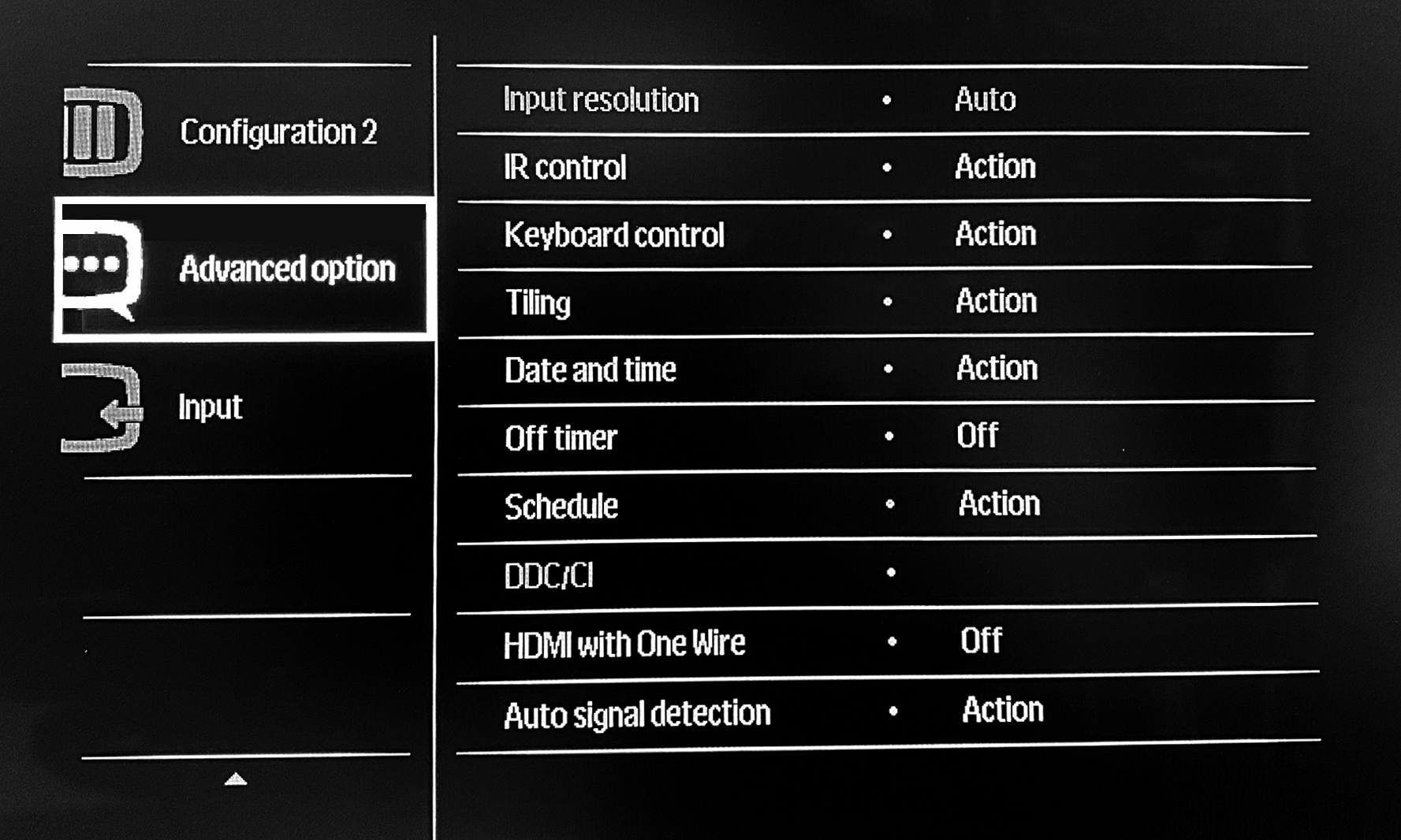

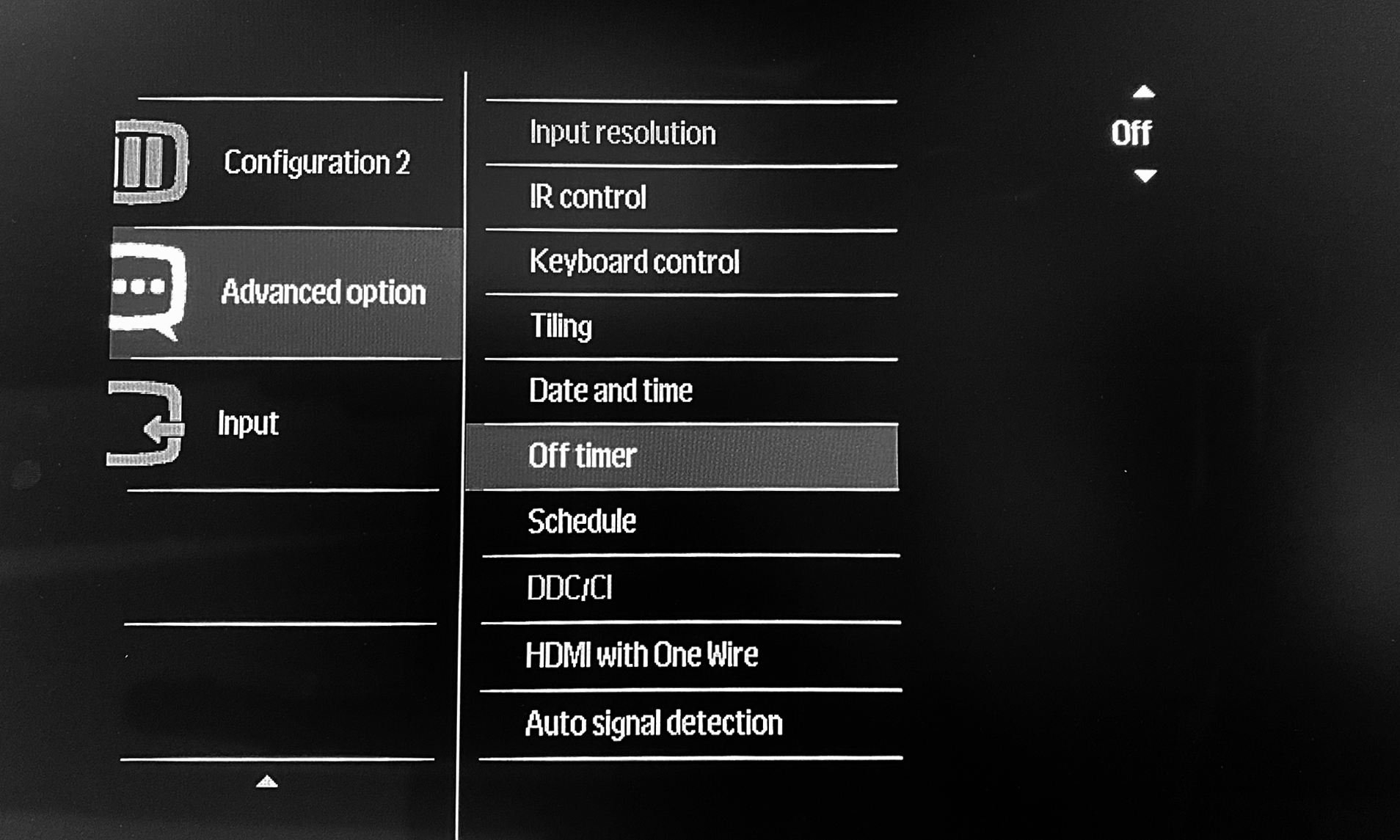

Off Timer

1. Use the arrow keys of the remote control to access the option
   → Off timer.


2. Press the Ok key on the remote control to get to the setting options.

→ Off

1. Use the arrow keys on the remote control to select the setting
   → Off.
2. Then press the Back key on the remote control to accept the setting.

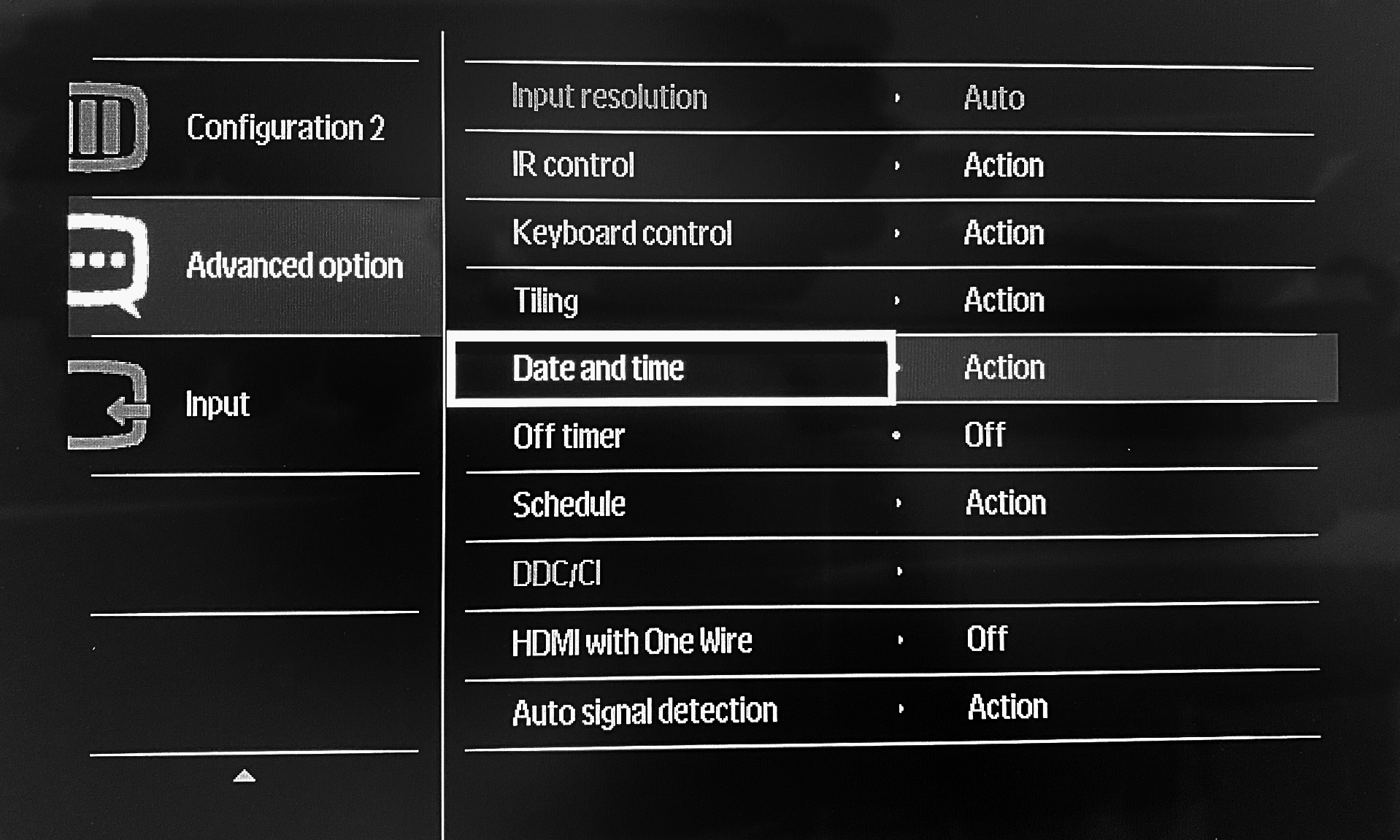

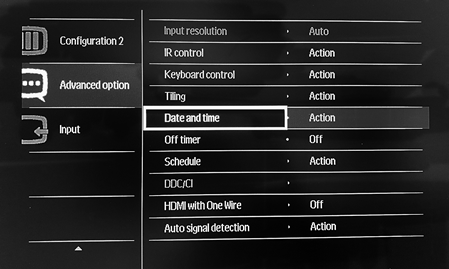

Date and Time

1. Use the arrow keys on the remote control to go to the option
   → Date and time.


2. Press the Ok key on the remote control to open the following window.

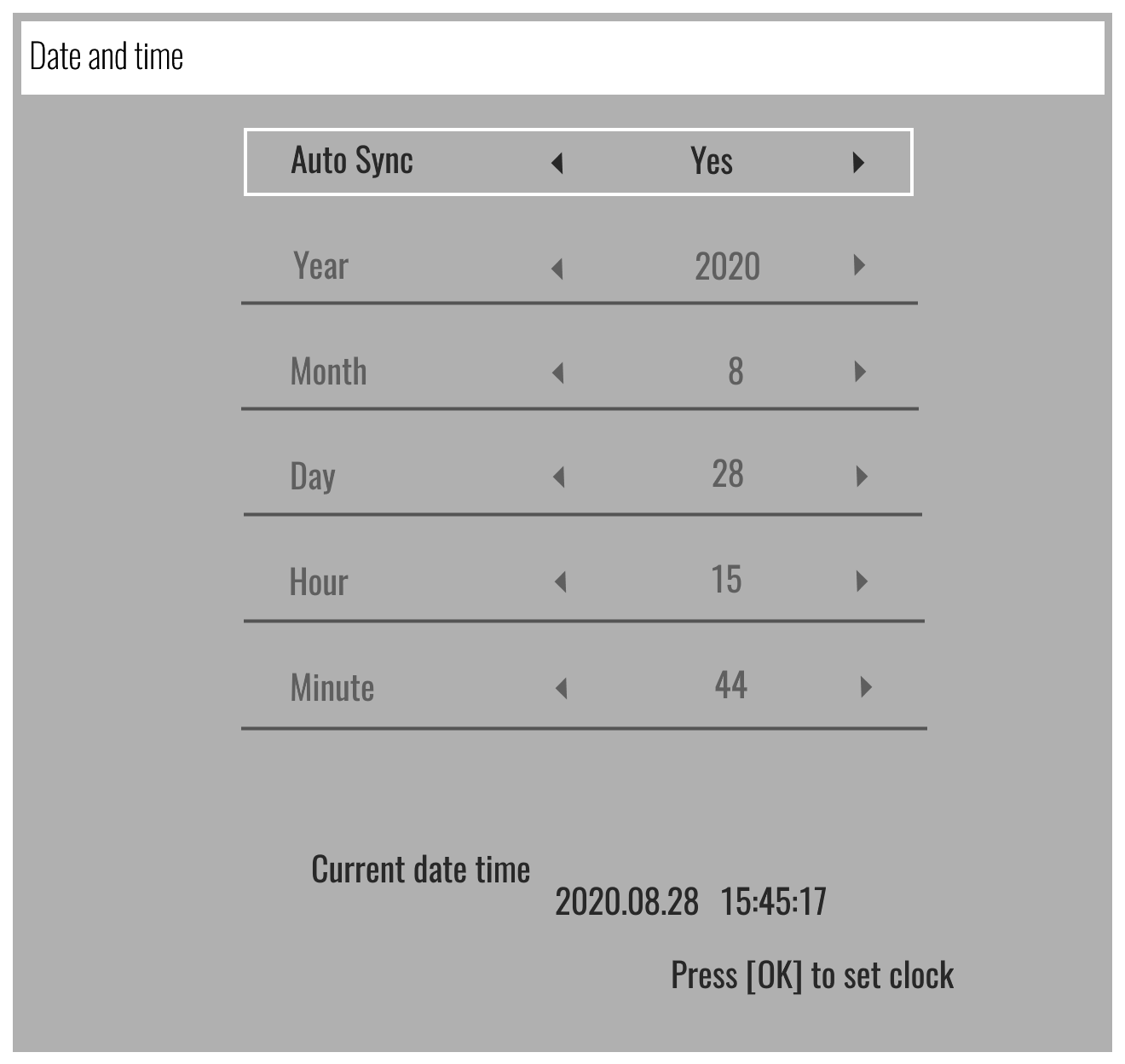

Input Window

1. Use the arrow keys on the remote control to go to the menu item
   → Auto Sync.


2. Use the arrow keys on the remote control to select → Yes.


3. Then press the Back key on the remote control of the device to confirm the setting.

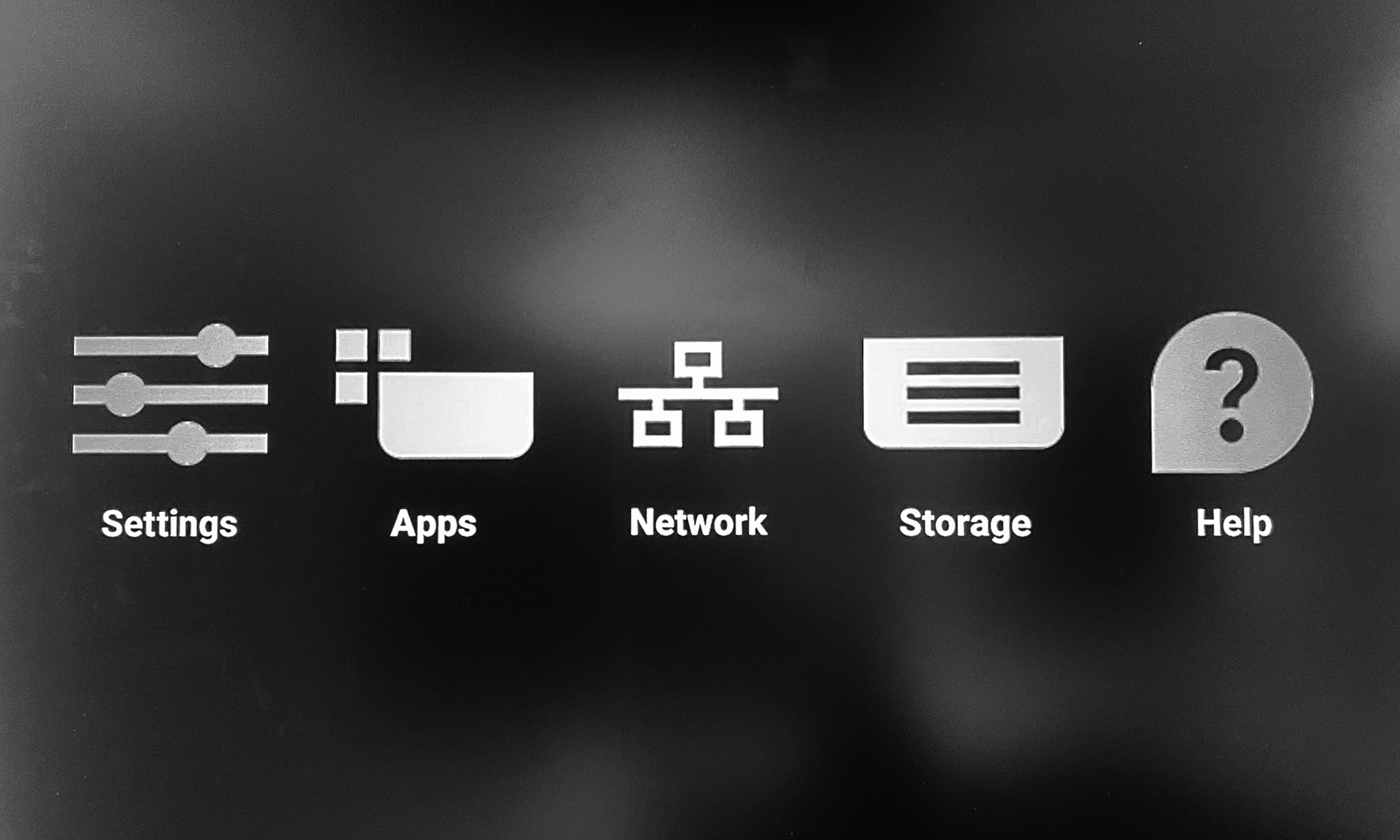

Menu HOME + 1888

Press the HOME key on the remote control of the device and then the digits 1888.

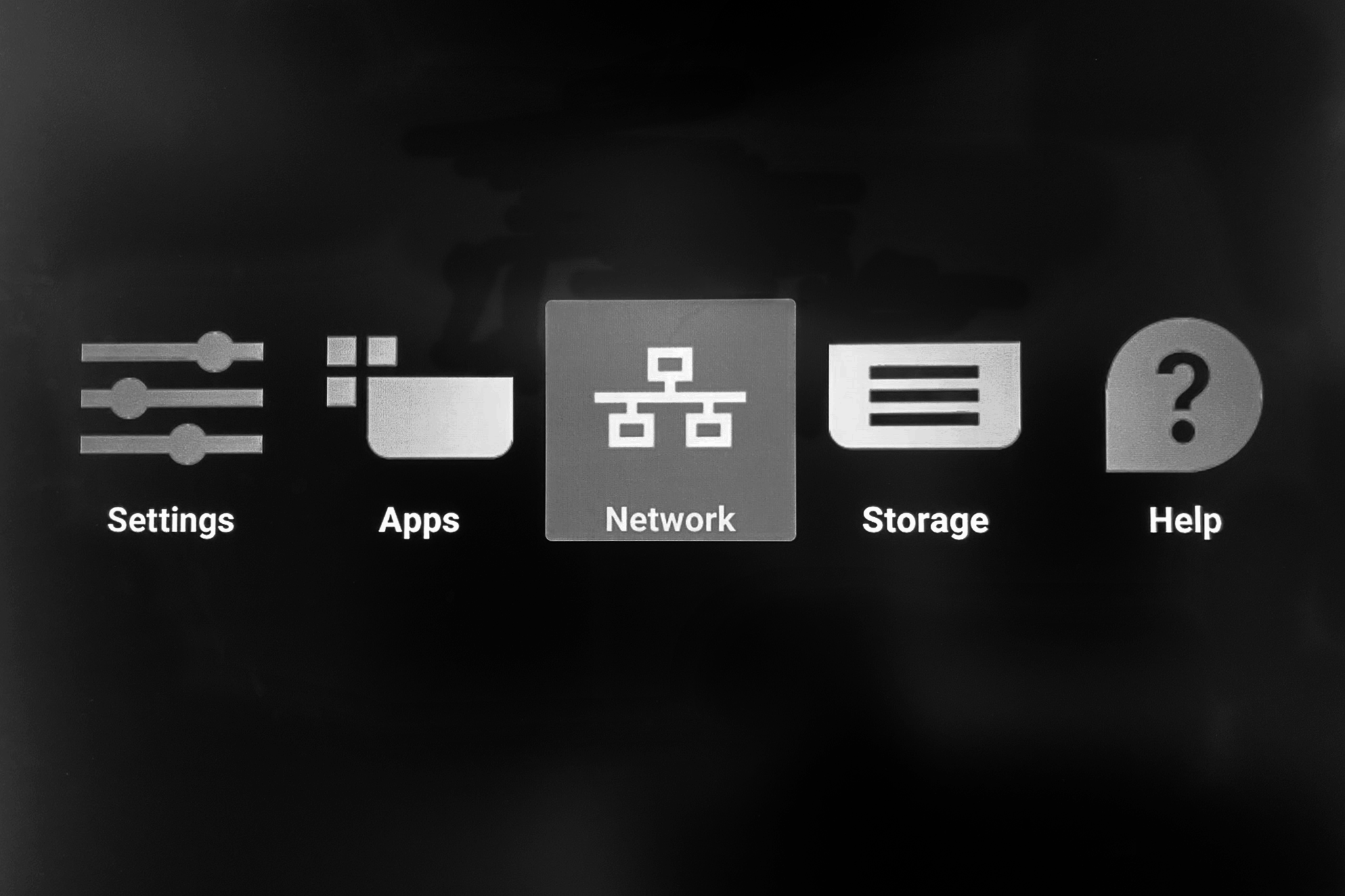

This will take you to the main menu for setting up the network and app.

Access Network Settings

1. Go to the menu item → Network in the now opened main menu by using the arrow keys on the remote control.

2. Press the Ok key on the remote control to access the network types.

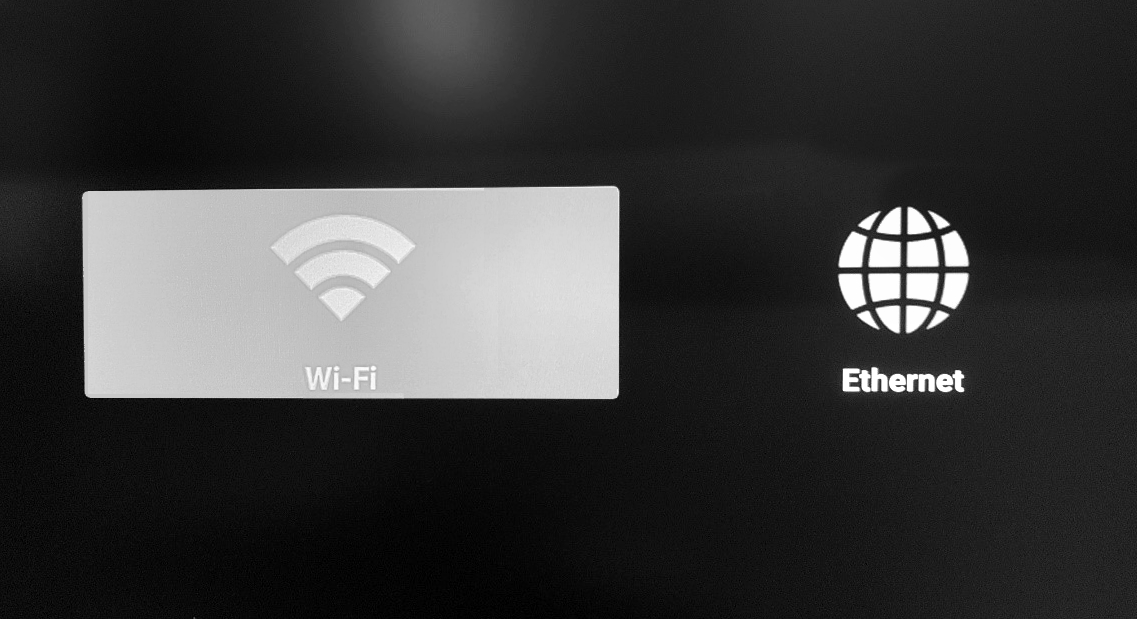

Wi-Fi

1. Select the network type → Wi-Fi in the appearing menu.
2. Then press the Ok key on the remote control to confirm the selection.

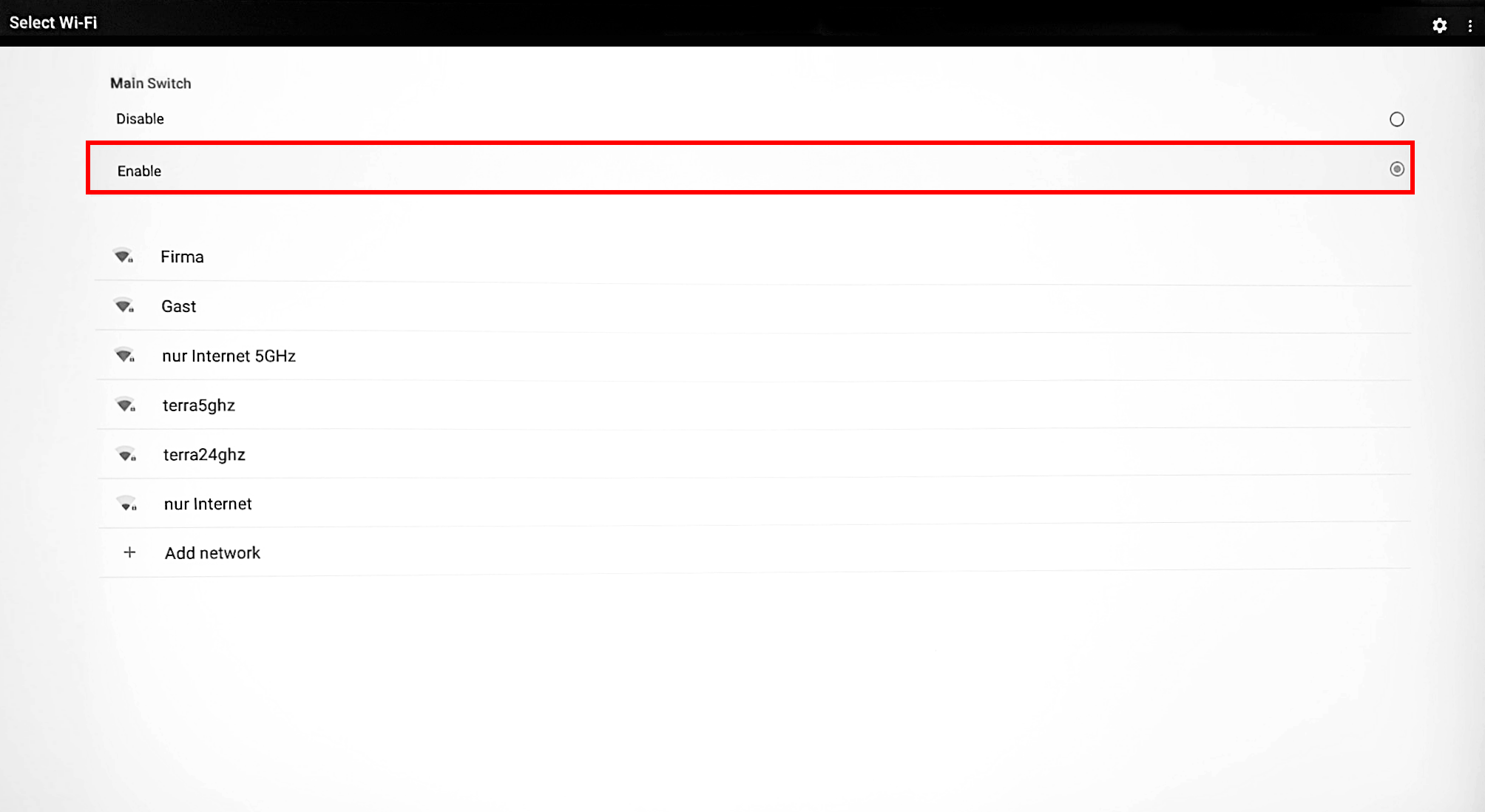

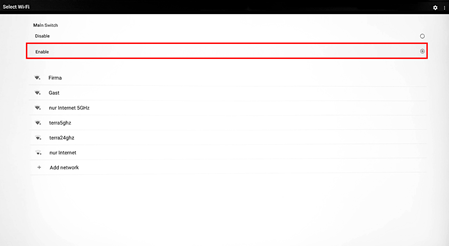

Connect Wi-Fi

1. Go to → Select Wi-Fi. You will then receive the available WLAN networks.


2. Now select your WLAN network and start connecting.

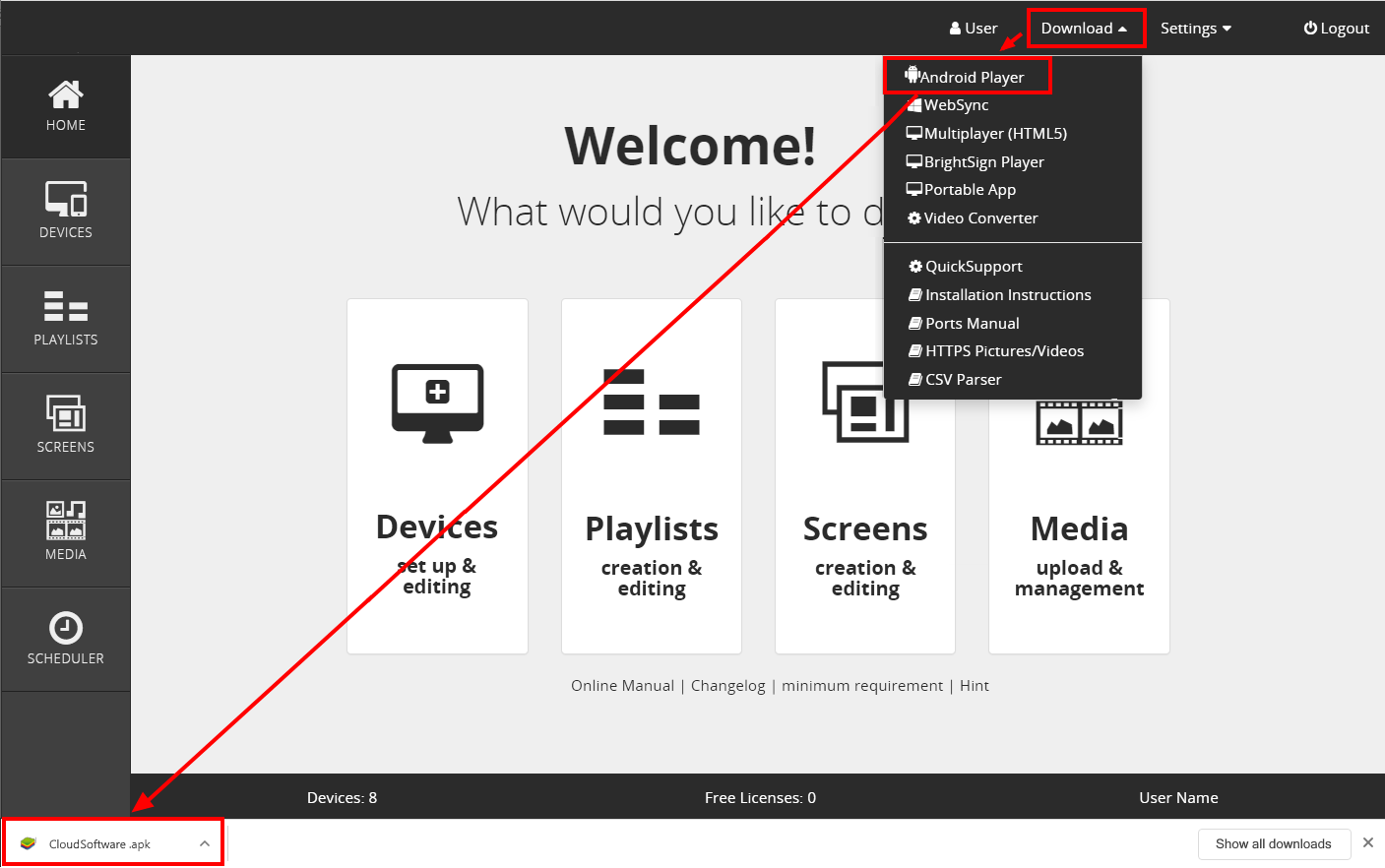

1. Please log in to the Cloud Software web portal using a PC and your access data.
2. Open the menu under Download in the Home screen.
3. Select the menu item Android Player.

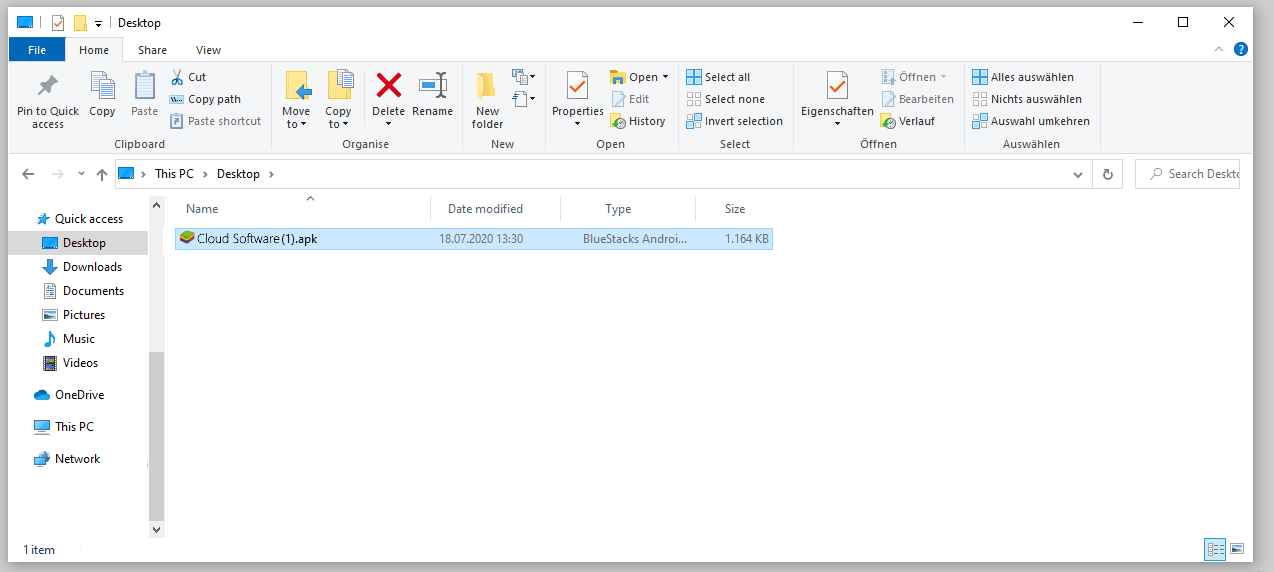

Copy Android Player.apk on USB Stick

1. Open the destination folder where the file was downloaded.
2. Insert a USB stick into the port of your PC and copy the Android Player.apk to the stick.

Access HOME + 1888 Menu

Press now the key combination HOME + 1888
on the remote control of the device to access the main menu.

Menu Item Apps

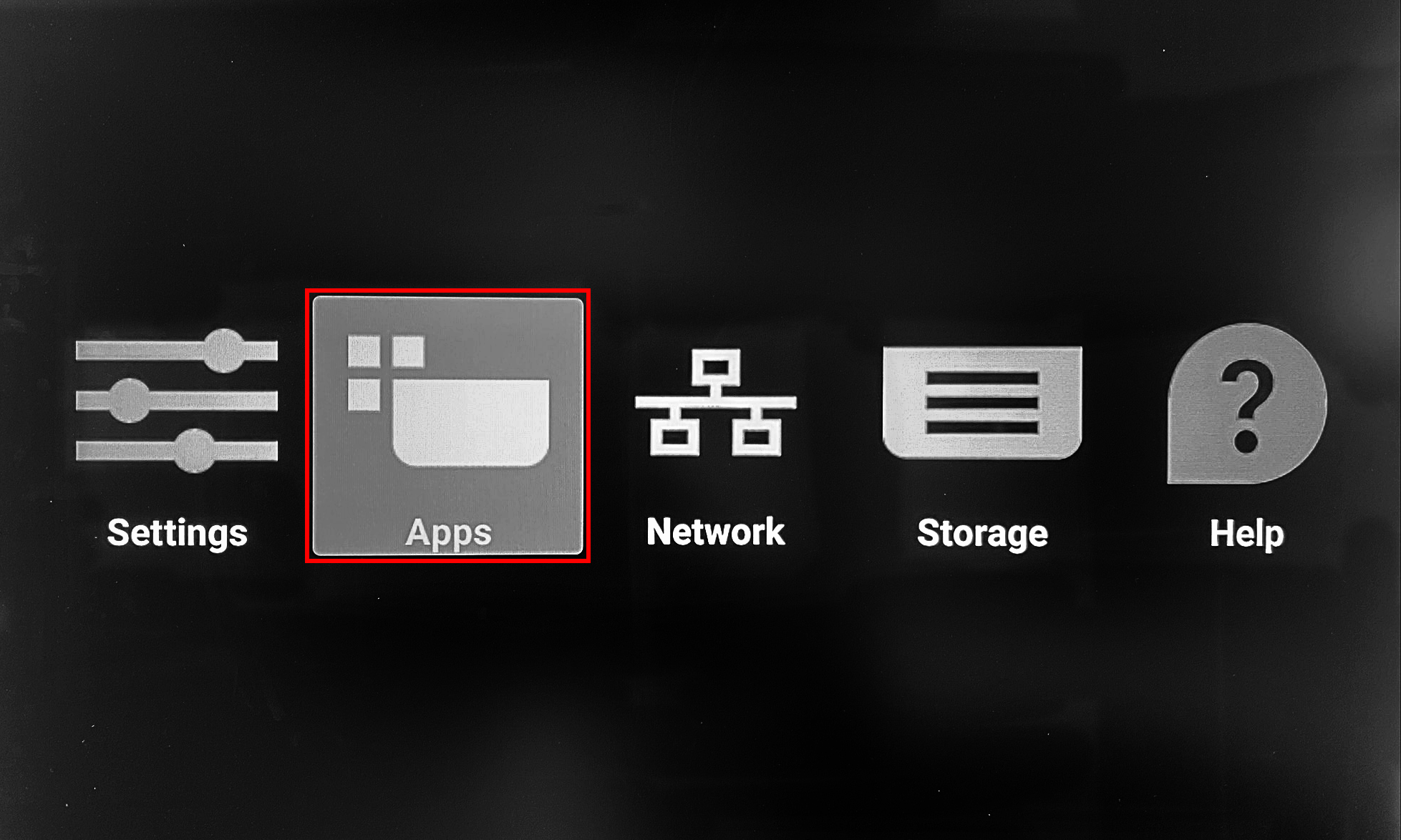

1. Go to the menu item → Apps.


2. Press the Ok key to access the corresponding setting options.

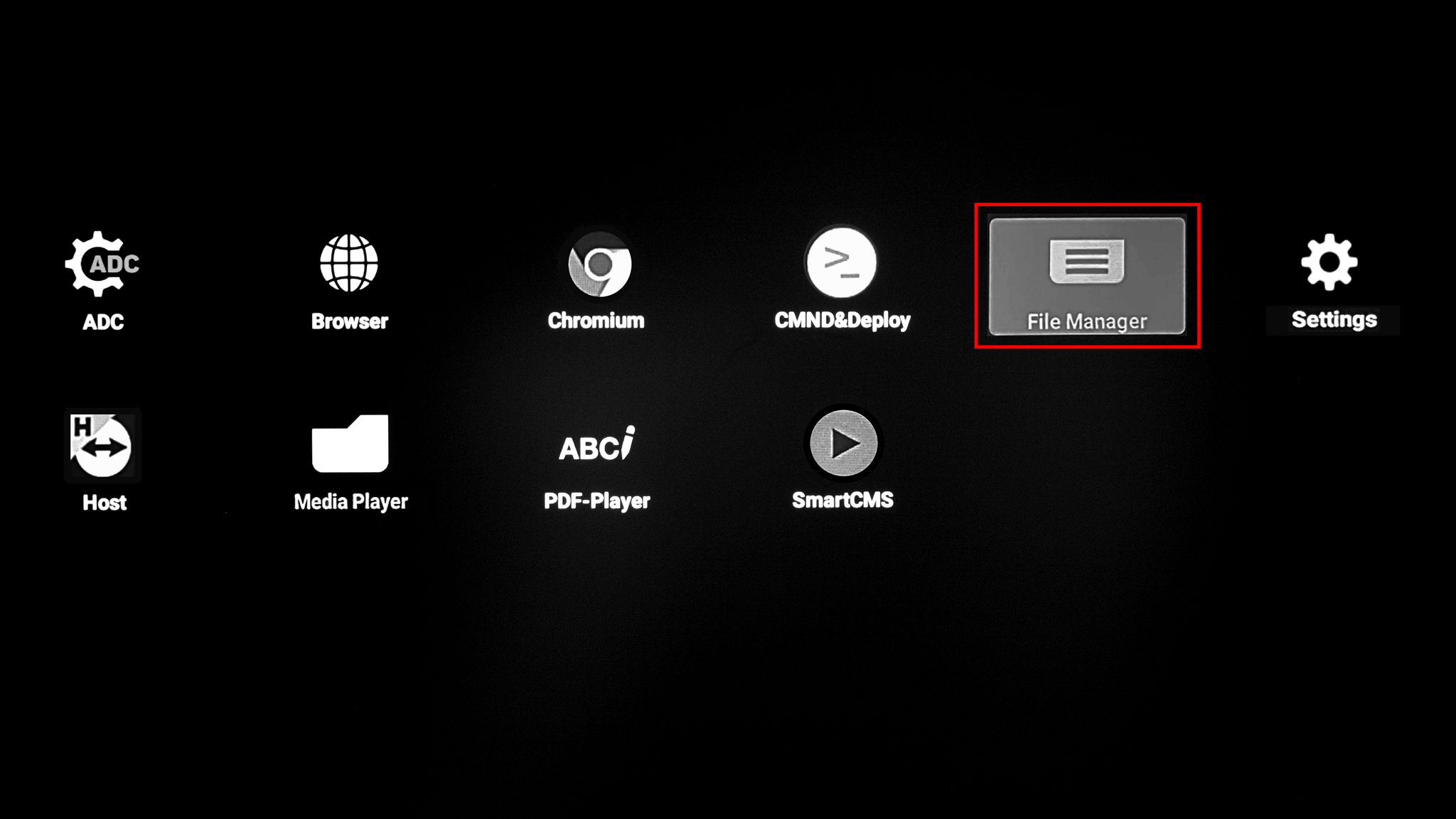

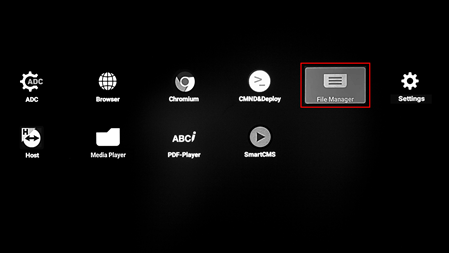

File Manager

1. Select the option → File Manager.


2. Press the Ok key to access the store types.

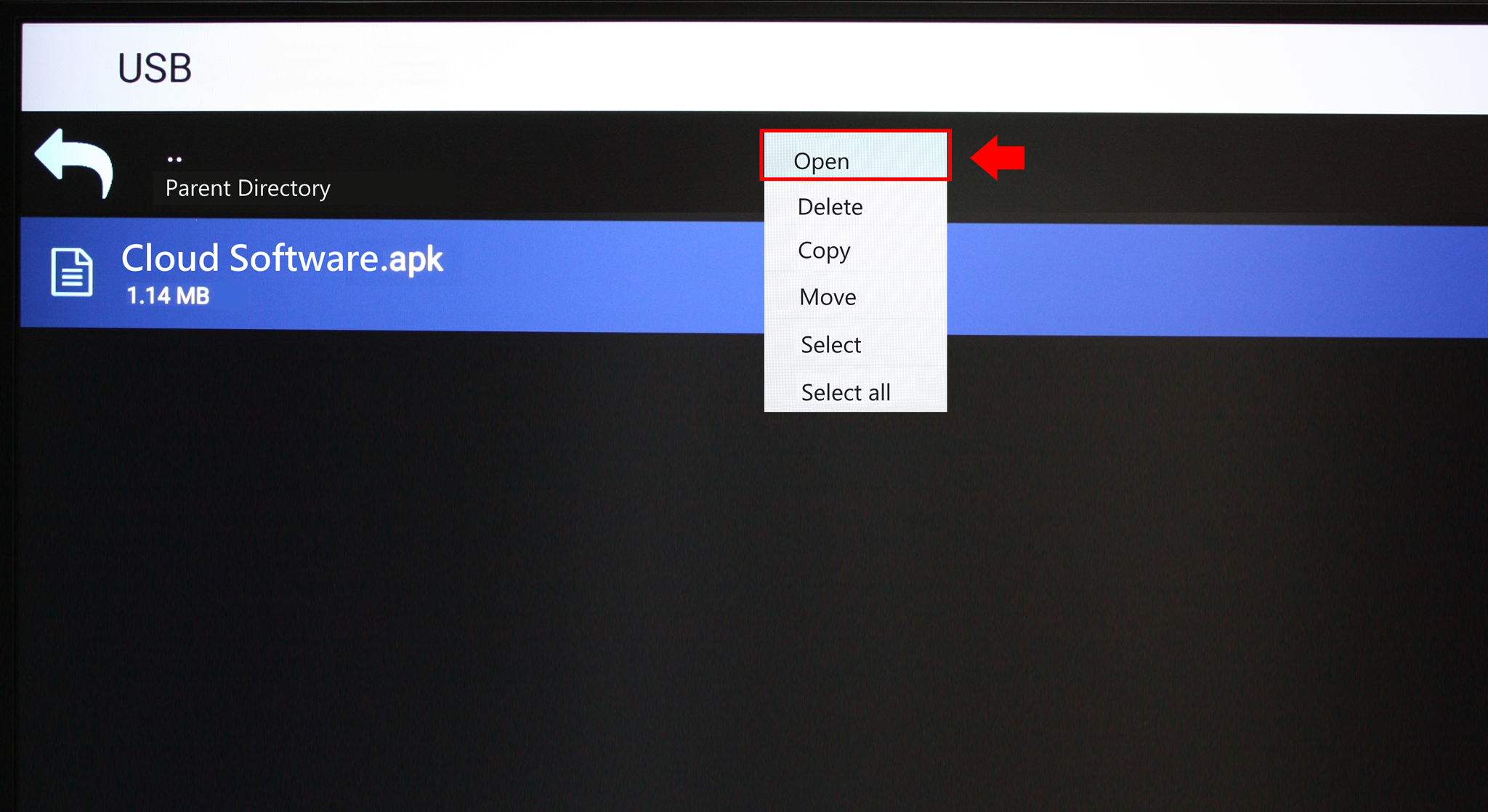

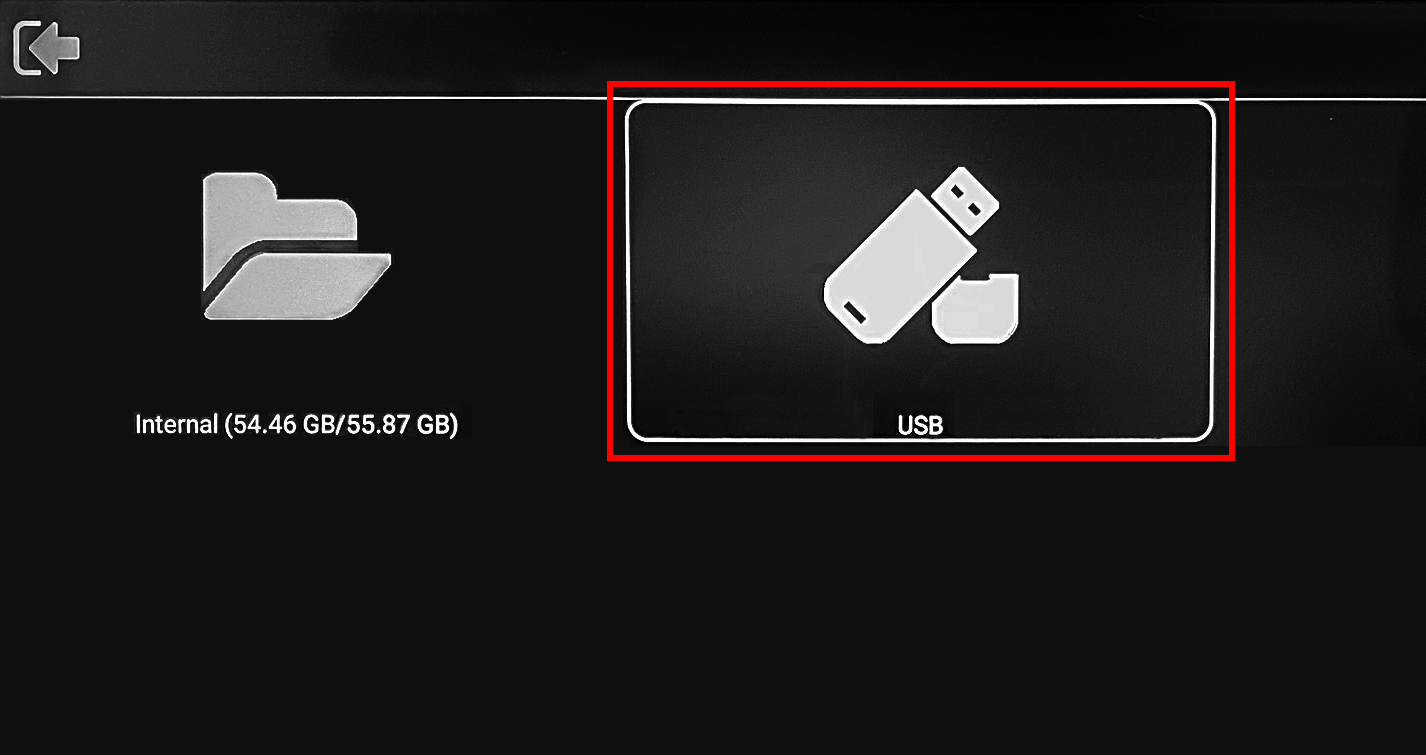

→ USB

1. Select now your USB stick.


2. Press the Ok key to access the copied Android Player App.

→ Open in the provided context menu.

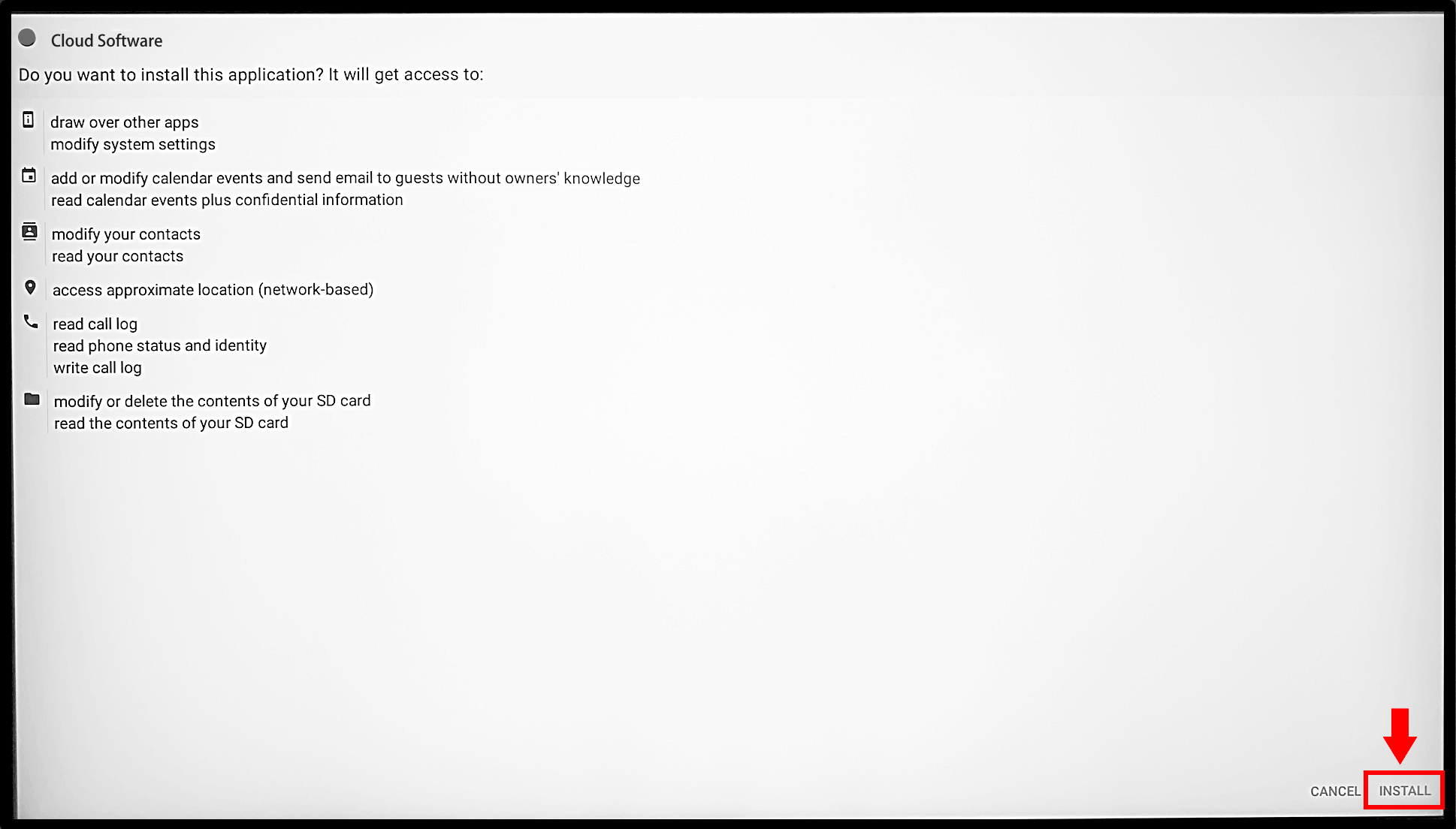

Install

1. The screen now shows the permissions.
2. Go to → Install and confirm by pressing → Ok.

Connect Player to Web Portal

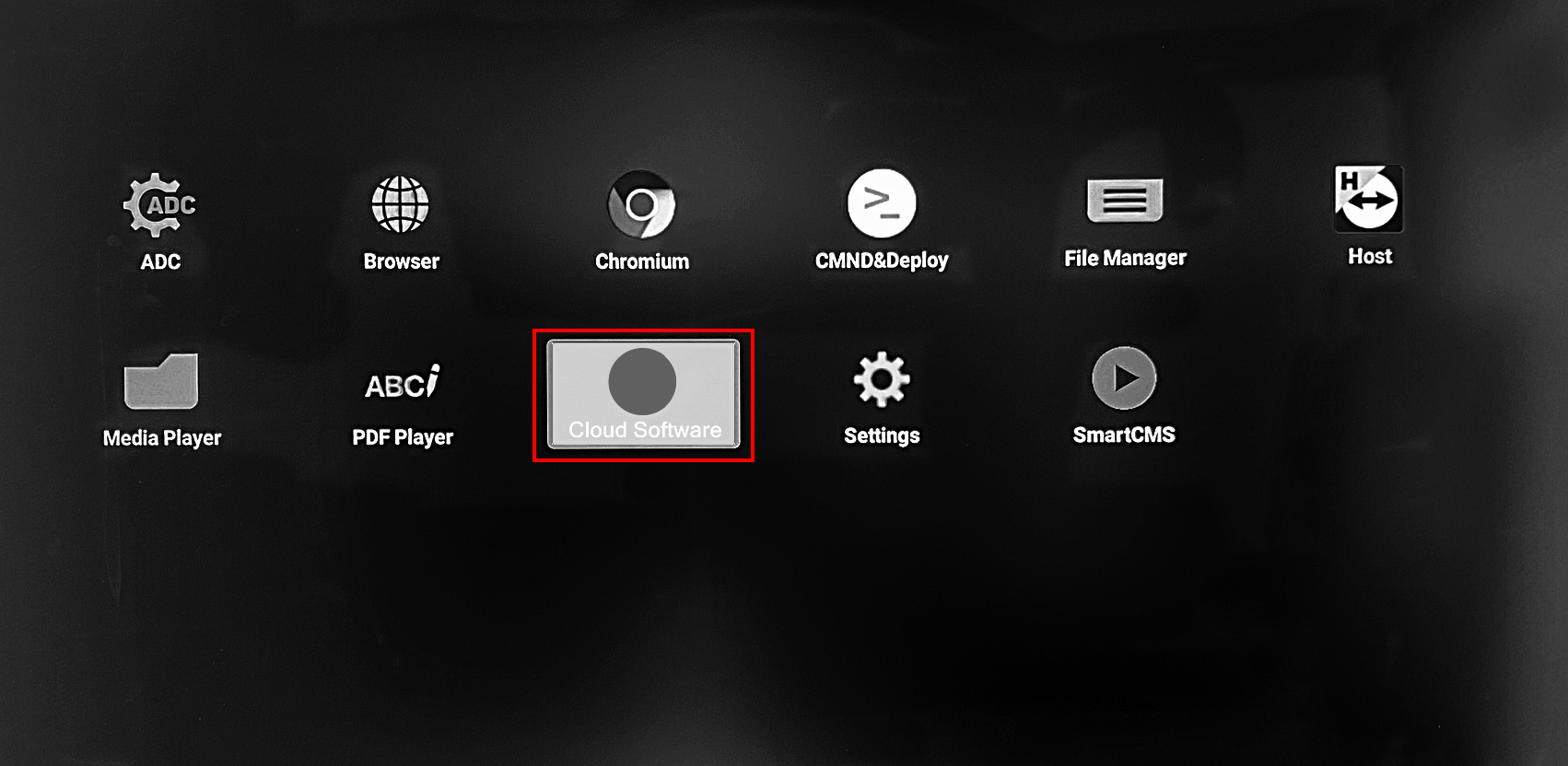

1. Press the key combination HOME + 1888 and select the menu item → Apps once more.
2. Select the Cloud Software App that is now provided.

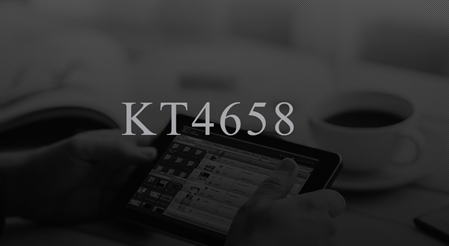

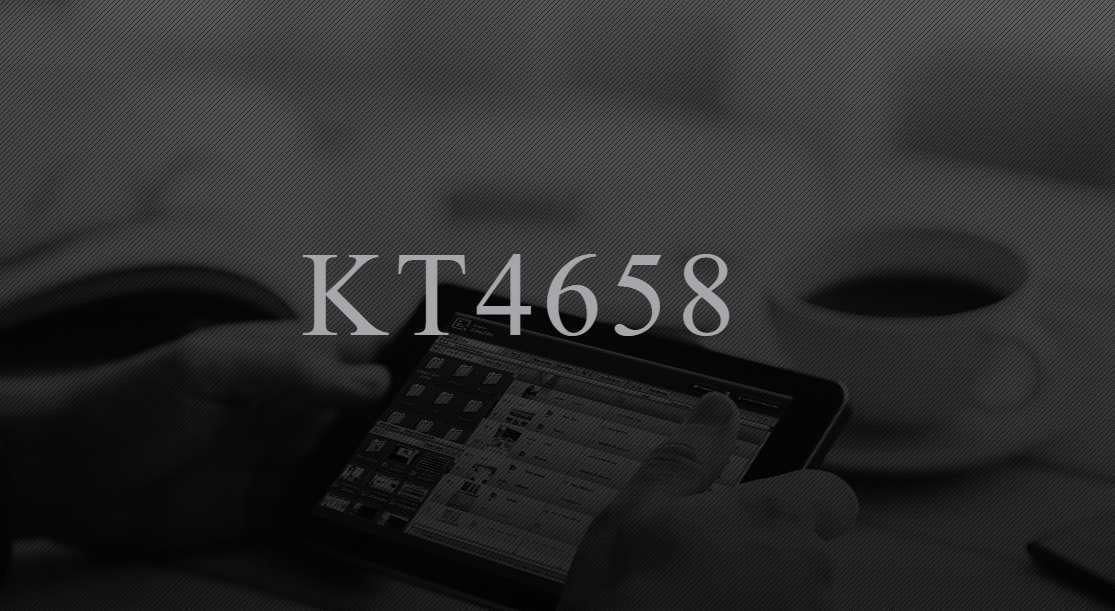

Activation Code

The Player starts now and displays an individually generated activation code. Now log in to your cloud account to connect the device to the portal by using the code.

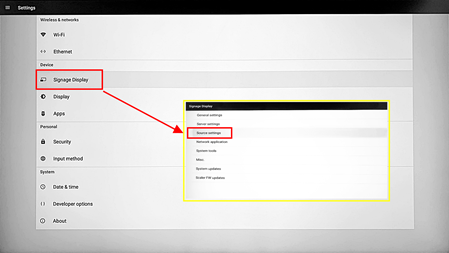

Signage Display

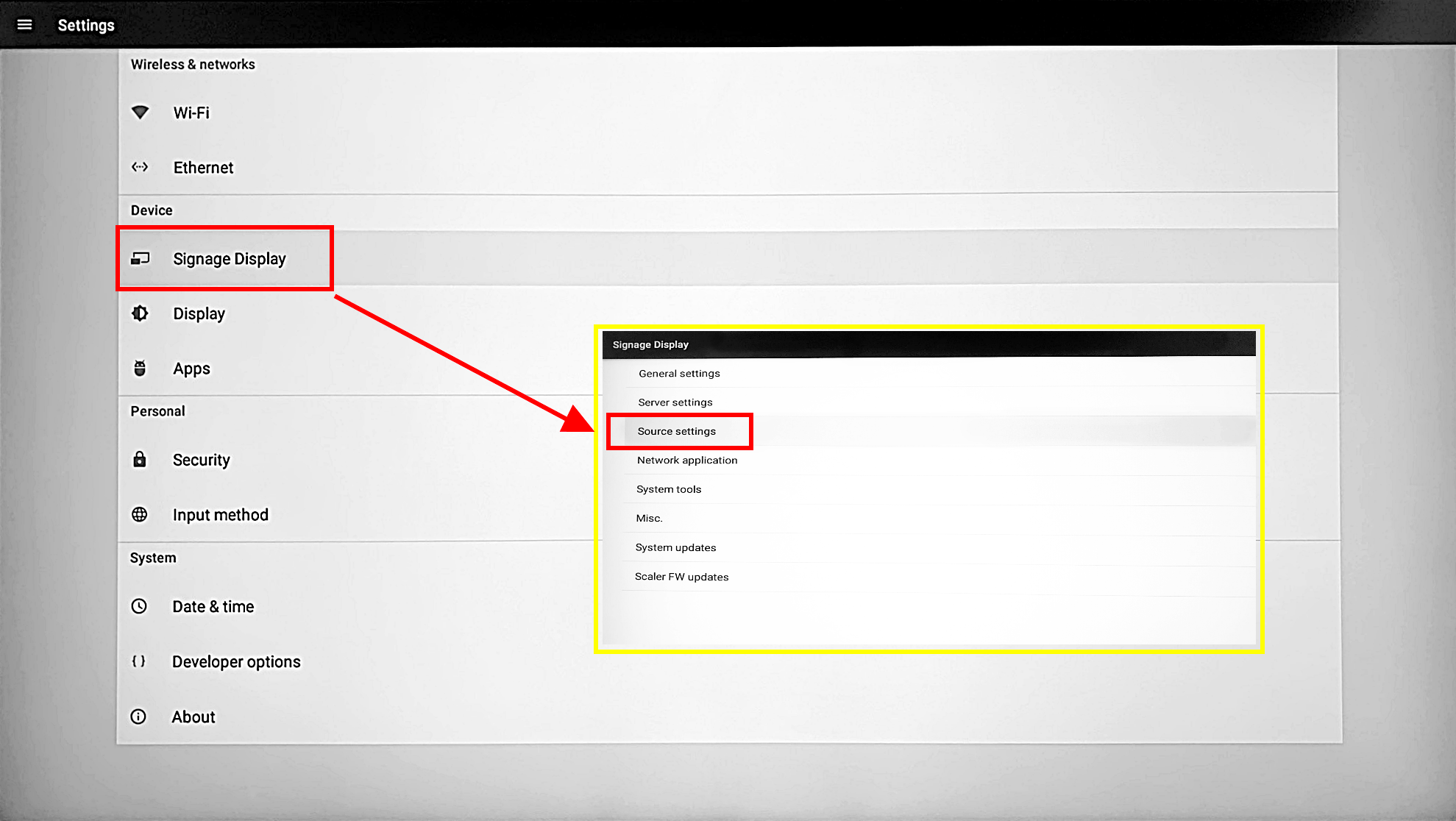

1. Press the key combination HOME + 1888.
2. Then select → Settings and subsequently → Signage Display.
3. Then choose → Source settings.

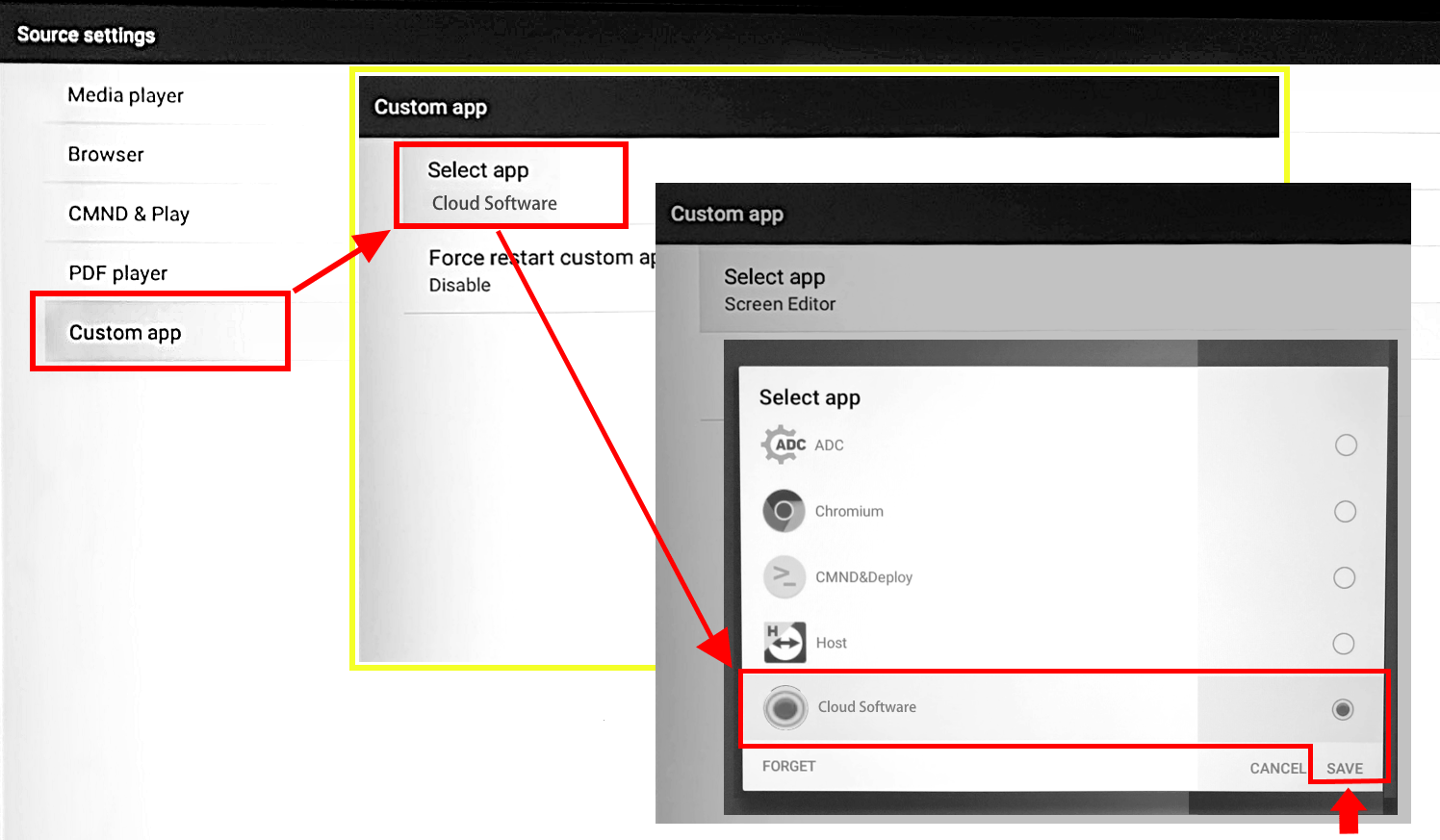

Customize App

1. Go to → Custom App.
2. Click on → Select app and then select Cloud Software app.
3. Enable the app and go to → Save.
4. Press the OK key on the remote control.

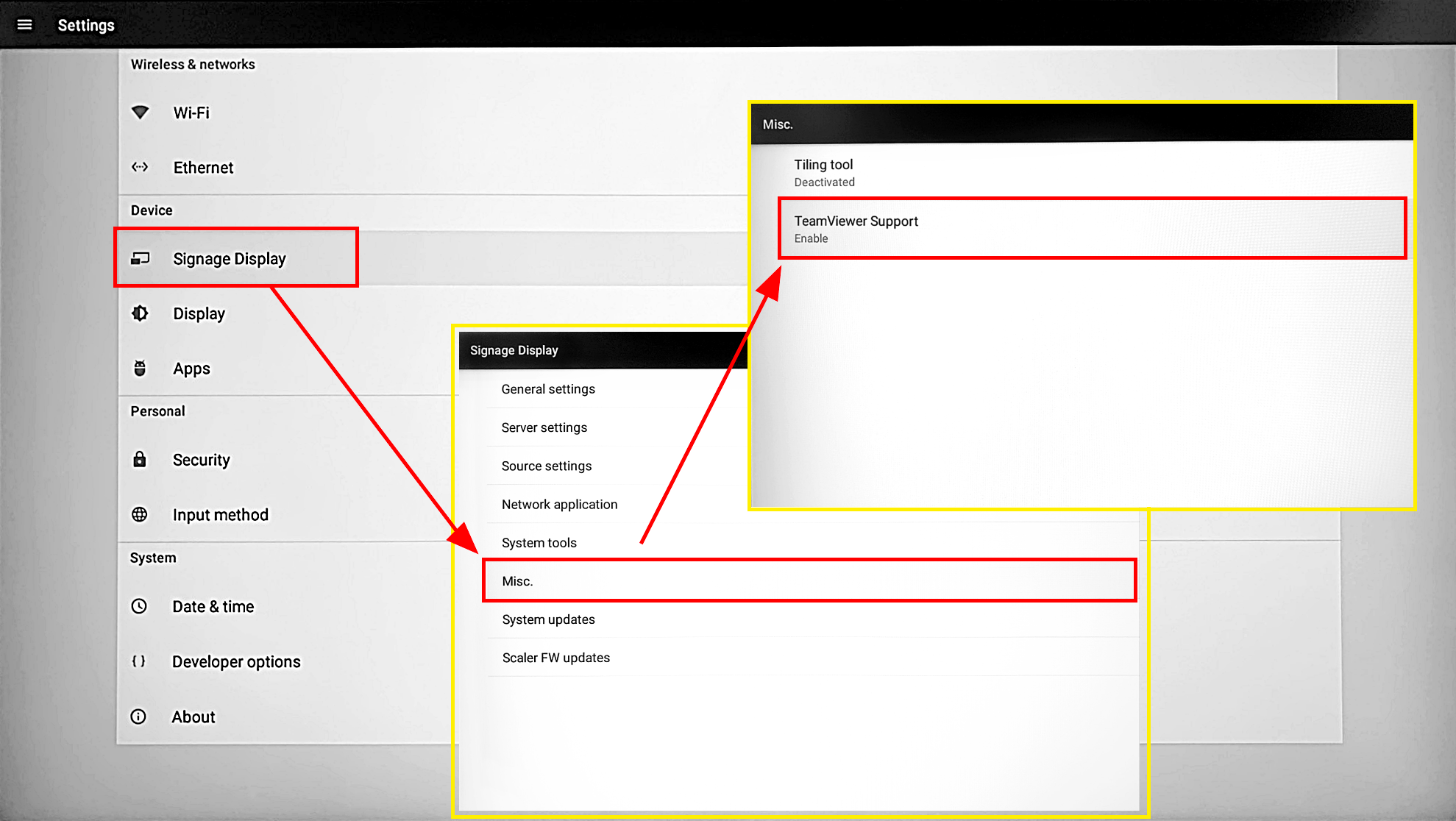

Signage Display

1. Press the key combination Home + 1888.
2. Now, select → Signage Display.
3. Click on Miscellaneous → Misc.
4. In the opening window, enable → TeamViewer Support.
